INSTALLATION

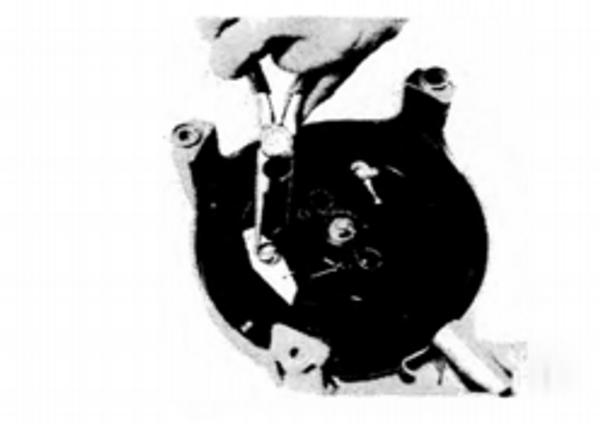

Hook the drive pawl spring onto the drive pawl, and install the drive pawl on the boss, then hook the drive pawl spring onto the starter housing shaft. Secure the drive pawl with the circlip.
Secure the starter assembly to the power unit with three bolts and install the plunger (a component of the start-in-gear protection system) to the starter case.
Start-in-gear protection system adjustment: Refer to page 4-19.
