MOTOR REMOVAL AND TRANSPORTING
MOTOR REMOVAL
MOTOR REMOVAL
TILLER HANDLE MODEL
Make sure that the engine has stopped completely.
Remove the fuel hose from the motor. 3. Remove the motor cover.
Disconnect the battery cable.

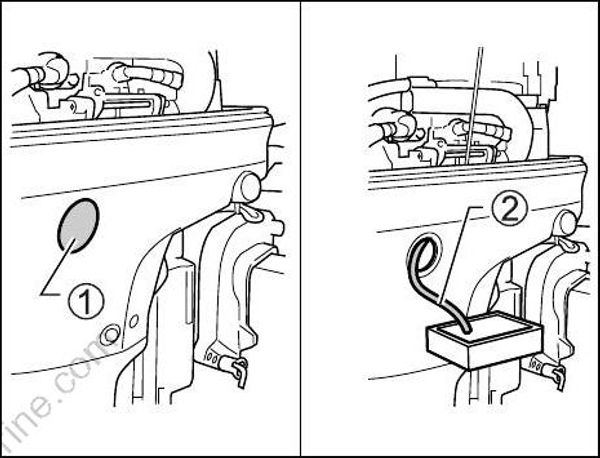

Remove the side cover plug 1. Pull the carburetor drain hose 2 end out.

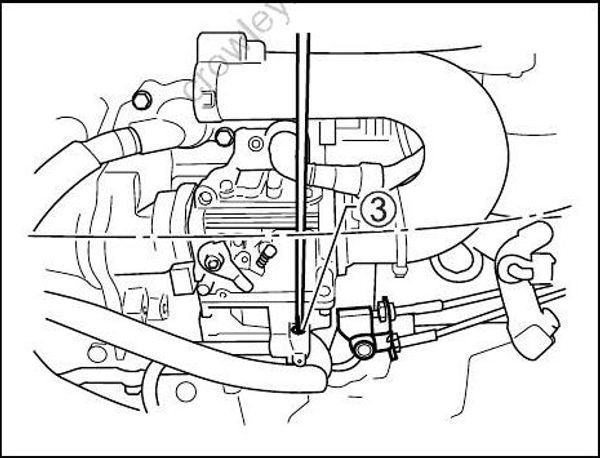

- Loosen the carburetor drain screw 3 and drain the gasoline into a suitable container.
Use a proper, safe container to store any gasoline drained from the outboard motor.
After draining, retighten the drain screw. Replace the carburetor drain hose, and rein stall the side cover plug.
Install the motor cover.
Remove the mounting bolts. 10. Loosen the clamp screws.
Lift the motor off the transom.
Stand the motor vertically and drain the water from the lower unit.

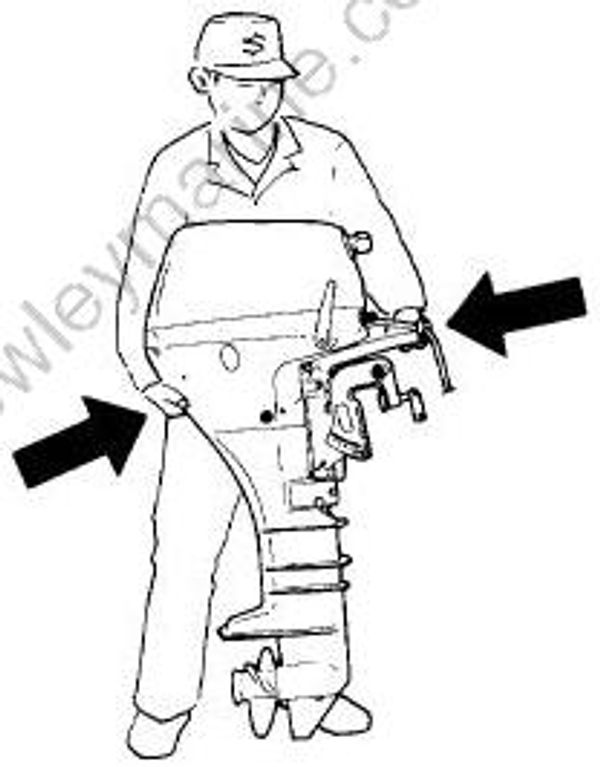

To carry, hold the motor by gripping the steering bracket and engine side cover.
REMOTE CONTROL MODEL
If it is necessary to remove the outboard motor from your boat, we recommend that you ask your authorized Suzuki Marine Dealer to do the work for you.
MOTOR TRANSPORTING
When transporting the motor, place the motor either vertically or horizontally.

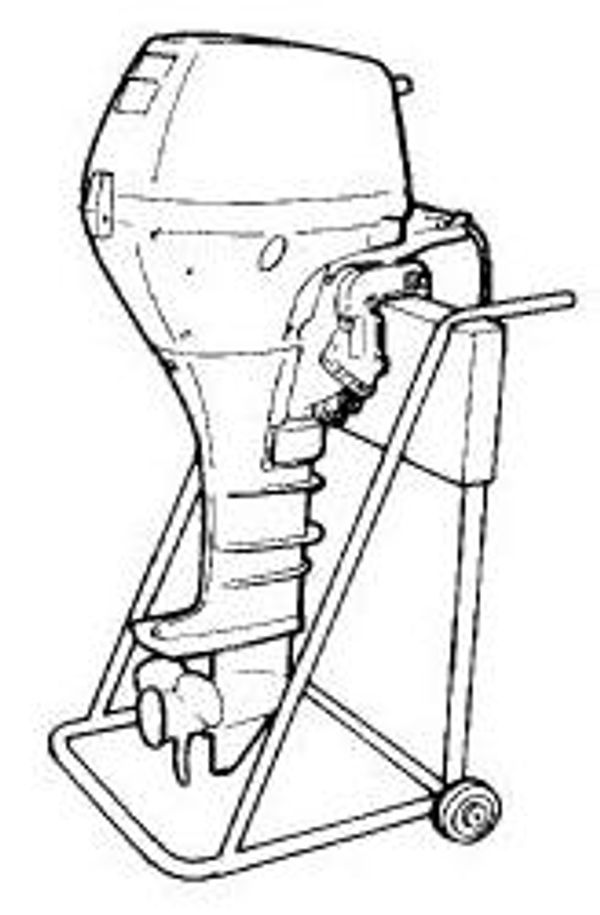

Vertical transport:
Attach the clamp bracket to a stand by securing the two clamp screws and two transom bolts

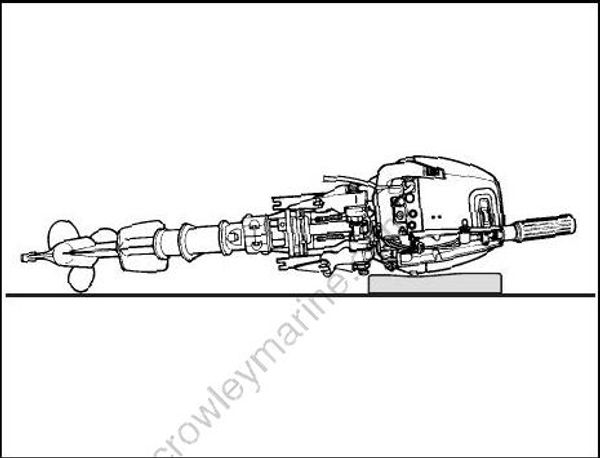

Horizontal transport:
Raise the tiller handle (if equipped) and rest the motor on a case protector with the port side downwards as shown.

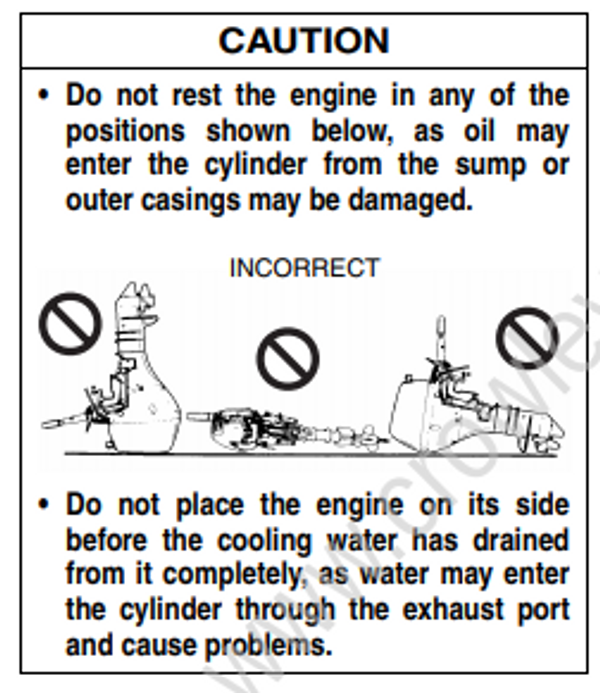

Do not let the lower unit of the outboard sit higher than the power head during transporting or storing, or water may trickle into the power head, causing damage to the engine.

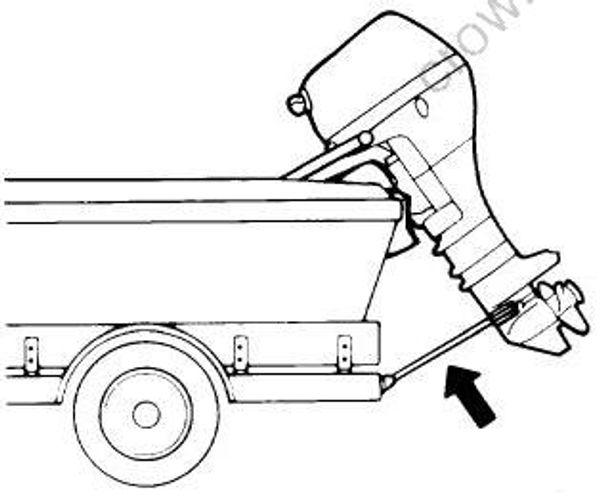

TRAILERING
When trailering your boat with the motor attached, keep the motor in the normal operating position unless there is not enough ground clearance. If you need more ground clearance, trailer the motor in a tilted position using a transom saver bar or similar device to support the weight of the motor.
When trailering the boat and the motor, do not use the tilt up lock knob to hold the motor in the fully tilted position. Towing motion or poor road surfaces may cause unexpected tilt lock release, resulting in damage to the motor and the tilt lock mechanism.
