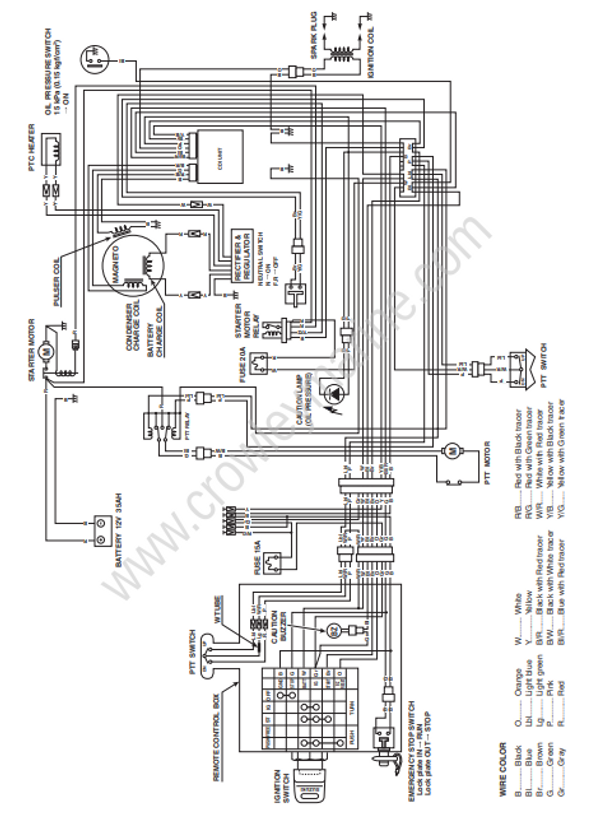

WIRING DIAGRAM
DF9.9TH (TILLER HANDLE)
WIRE COLOR
B.......... Black
Bl......... Blue
Br......... Brown
G..........Green
Lbl........Light blue
O..........Orange
P...........Pink
R.......... Red
W......... White
Y...........Yellow
B/R.......Black with Red tracer
B/W...... Black with White tracer
BI/R......Blue with Red tracer
R/B.......Red with Black tracer
W/R......White with Red tracer
Y/B.......Yellow with Black tracer
Y/G...... Yellow with Green tracer
DF9.9T (REMOTE CONTROL)
WIRE COLOR
B.......... Black
Bl......... Blue
Br......... Brown
G..........Green
Gr.........Gray
O......... Orange
Lbl........Light blue
Lg........ Light green
P...........Pink
R.......... Red
W......... White
Y...........Yellow
B/R.......Black with Red tracer
B/W...... Black with White tracer
BI/R......Blue with Red tracer
R/B.......Red with Black tracer
R/G...... Red with Green tracer
W/R..... White with Red tracer
Y/B.......Yellow with Black tracer
Y/G...... Yellow with Green tracer
