Owner's Manual DF9.9, DF8A Troubleshooting

Model Number:

Identification Number:

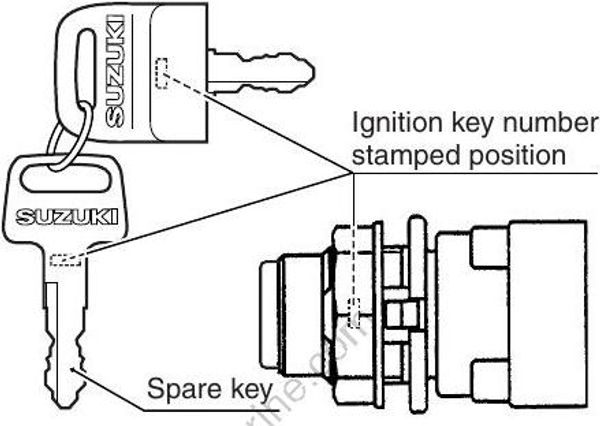

Ignition Key Number:

• THIS ENGINE IS CERTIFIED TO OPERATE ON UNLEADED GASOLINE OF 87 OCTANE ((R+M)/2 METHOD) OR GREATER.
• EXHAUST EMISSION CONTROL
SYSTEM:
ENGINE MODIFICATION

This troubleshooting guide is provided to help you find the cause of common complaints.

Failure to troubleshoot a problem correctly can damage your outboard motor. Improper repairs or adjustments may damage the outboard motor instead or fixing it. Such damage may not be covered under warranty.
If you are not sure about the proper action to correct a problem, consult your Suzuki marine dealer.

Recoil starter/starter motor will not operate:

• Shift grip/handle is not in NEUTRAL.
• Fuse is blown out. (Electric start model)

Engine will not start (hard to start):

• Emergency stop switch lock plate is not in position.
• Fuel tank is empty.
• Fuel hose is not properly connected to engine.
• Fuel hose is kinked or pinched.
• Spark plug is fouled.

Engine idles unstably or stalls:

• Choke knob is not pushed in securely.
• Fuel hose is kinked or pinched.
• Spark plug is fouled.

Engine speed will not increase (Engine power is low):

• Engine is overloaded.
• Propeller is damaged.
• Propeller is not properly matched to loads.

Engine vibrates excessively:

• Engine mounting bolts or clamp screws are loose.
• Foreign object (seaweed etc.) is tangled on propeller.
• Propeller is damaged.

Engine overheats:

• Cooling water intake(s) are blocked.
• Engine is overloaded.
• Propeller is not properly matched to loads.

FUSE

1. Turn the ignition key to the “off” position. (Remote control model)
2. Remove the motor cover.

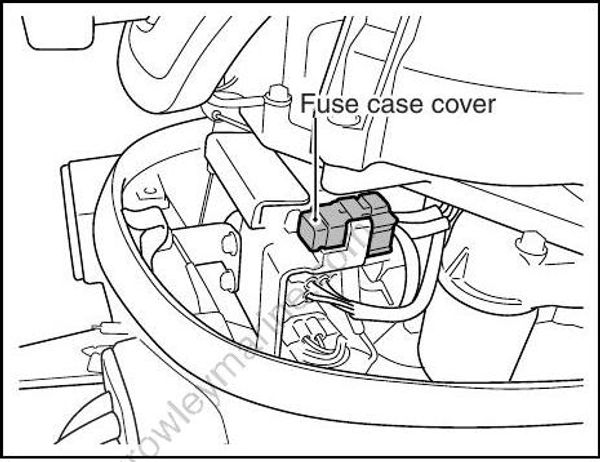

3. Remove the fuse case cover and pull off fuse.

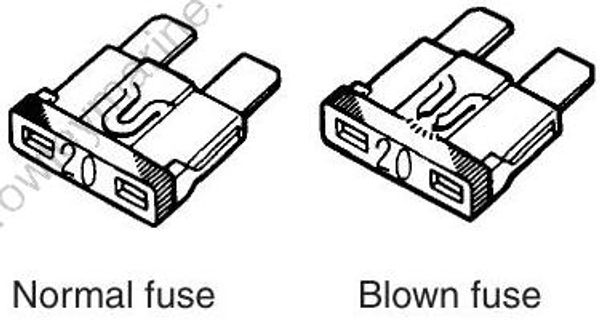

4. Inspect the fuse and replace with new fuse if needed.

If you replace a blown fuse with a fuse having a different amperage rating or with a substitute such as aluminum foil or a wire, extensive electrical system damage and a fire may result.
Always replace a blown fuse with a fuse of the same type and rating.

If a new fuse blows in a short time after installation, you may have a major electrical system problem.
Consult your SUZUKI marine dealer.
