WIRING DIAGRAM

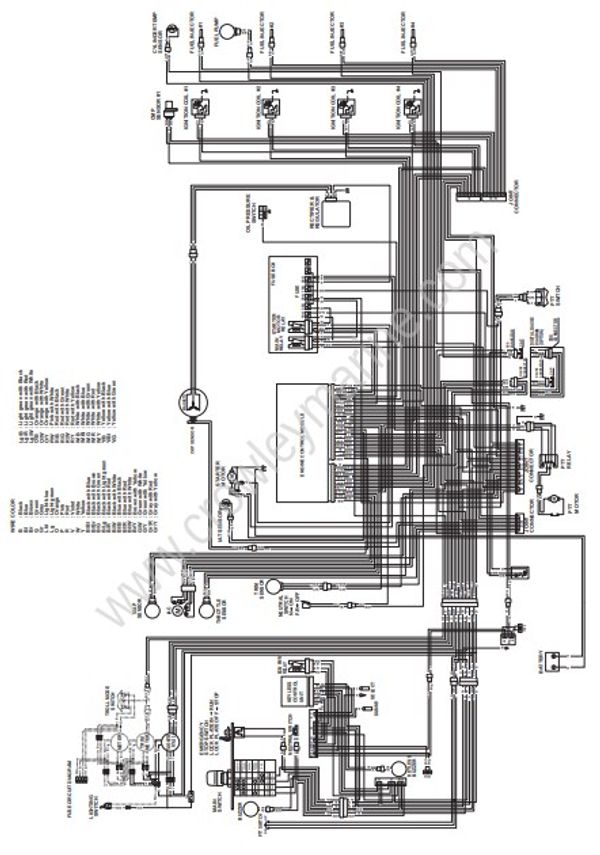

Equipped with keyless start system (Side mount remote control model)
WIRE COLOR
B : Black
Bl : Blue
Br : Brown
G : Green
Gr : Gray
Lbl : Light blue
Lg : Light green
O : Orange
P : Pink
R : Red
V : Violet
W : White
Y : Yellow
B/Bl : Black with Blue
B/Br : Black with Brown
B/G : Black with Green
B/Lg : Black with Light green
B/R : Black with Red
B/W : Black with White
Bl/B : Blue with Black
Bl/R : Blue with Red
Bl/W : Blue with White
Br/Y : Brown with Yellow
G/W : Green with White
G/Y : Green with Yellow
Gr/R : Gray with Red
Gr/Y : Gray with Yellow
Lg/B : Light green with Black
Lg/R : Light green with Red
Lg/W : Light green with White
O/B : Orange with Black
O/W : Orange with White
O/Y : Orange with Yellow
P/W : Pink with White
R/B : Red with Black
R/G : Red with Green
R/W : Red with White
R/Y : Red with Yellow
W/B : White with Black
W/Bl : White with Blue
W/G : White with Green
W/R : White with Red
W/Y : White with Yellow
Y/B : Yellow with Black
Y/Bl : Yellow with Blue
Y/G : Yellow with Green

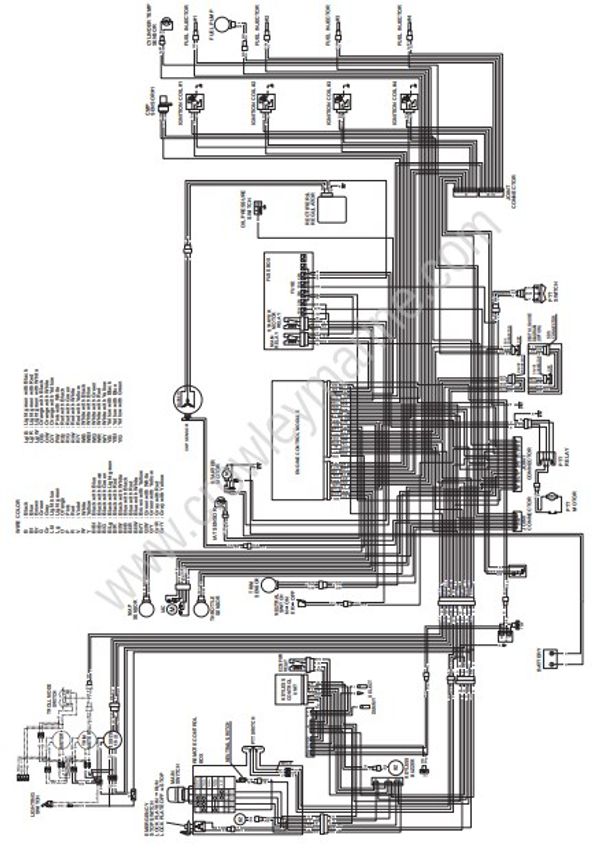

Equipped with keyless start system (Top mount remote control model)
WIRE COLOR
B : Black
Bl : Blue
Br : Brown
G : Green
Gr : Gray
Lbl : Light blue
Lg : Light green
O : Orange
P : Pink
R : Red
V : Violet
W : White
Y : Yellow
B/Bl : Black with Blue
B/Br : Black with Brown
B/G : Black with Green
B/Lg : Black with Light green
B/R : Black with Red
B/W : Black with White
Bl/B : Blue with Black
Bl/R : Blue with Red
Bl/W : Blue with White
Br/Y : Brown with Yellow
G/W : Green with White
G/Y : Green with Yellow
Gr/R : Gray with Red
Gr/Y : Gray with Yellow
Lg/B : Light green with Black
Lg/R : Light green with Red
Lg/W : Light green with White
O/B : Orange with Black
O/W : Orange with White
O/Y : Orange with Yellow
P/W : Pink with White
R/B : Red with Black
R/G : Red with Green
R/W : Red with White
R/Y : Red with Yellow
W/B : White with Black
W/Bl : White with Blue
W/G : White with Green
W/R : White with Red
W/Y : White with Yellow
Y/B : Yellow with Black
Y/Bl : Yellow with Blue
Y/G : Yellow with Green

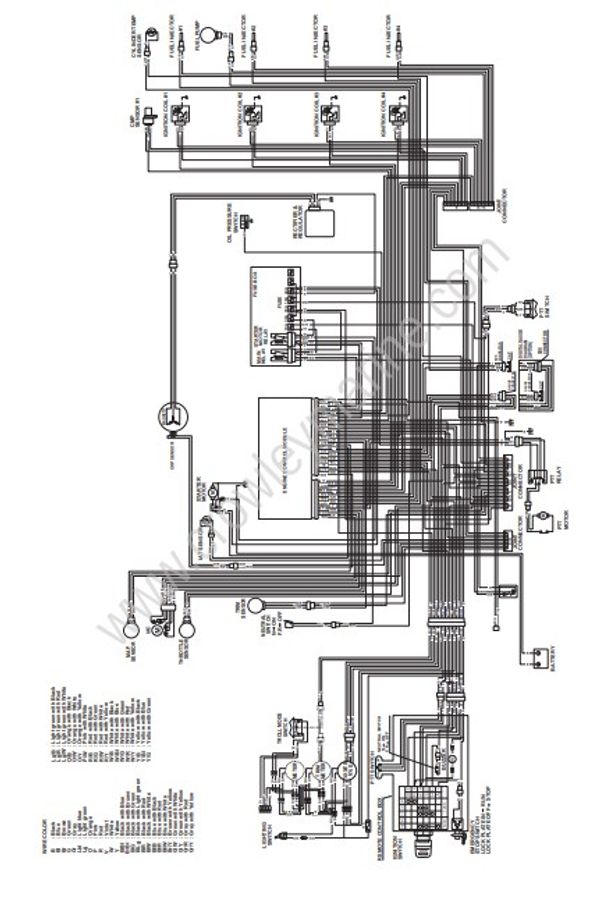

Not equipped with keyless start system
WIRE COLOR
B : Black
Bl : Blue
Br : Brown
G : Green
Gr : Gray
Lbl : Light blue
Lg : Light green
O : Orange
P : Pink
R : Red
V : Violet
W : White
Y : Yellow
B/Bl : Black with Blue
B/Br : Black with Brown
B/G : Black with Green
B/Lg : Black with Light green
B/R : Black with Red
B/W : Black with White
Bl/B : Blue with Black
Bl/R : Blue with Red
Bl/W : Blue with White
Br/Y : Brown with Yellow
G/W : Green with White
G/Y : Green with Yellow
Gr/R : Gray with Red
Gr/Y : Gray with Yellow
Lg/B : Light green with Black
Lg/R : Light green with Red
Lg/W : Light green with White
O/B : Orange with Black
O/W : Orange with White
O/Y : Orange with Yellow
P/W : Pink with White
R/B : Red with Black
R/G : Red with Green
R/W : Red with White
R/Y : Red with Yellow
W/B : White with Black
W/Bl : White with Blue
W/G : White with Green
W/R : White with Red
W/Y : White with Yellow
Y/B : Yellow with Black
Y/Bl : Yellow with Blue
Y/G : Yellow with Green
