Owner's Manual DF90A, DF70A Wiring Diagram

Added Jul 24, 2020Updated Jan 28, 2021
Owner's Manual DF90A, DF70A Wiring Diagram
Suzuki Marine

WIRING DIAGRAM

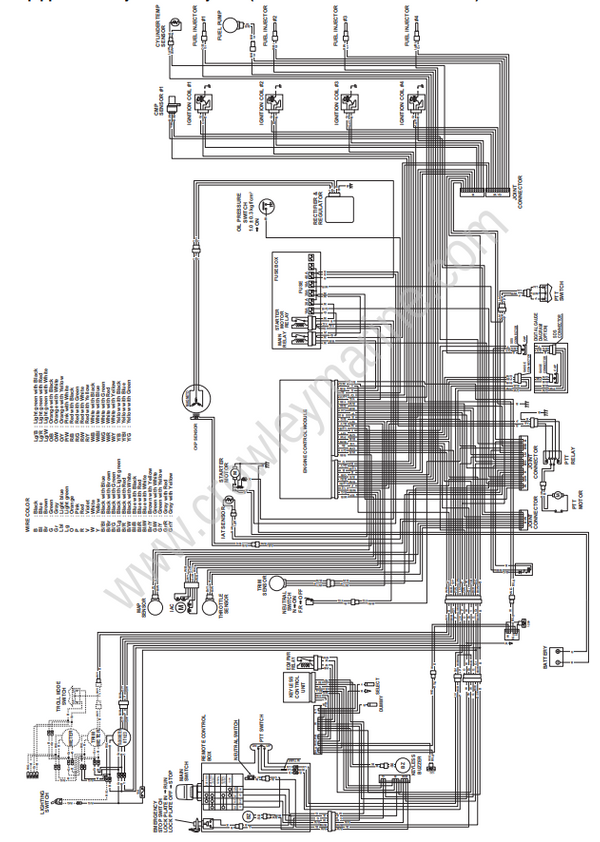

Equpped with keyless start system (Side mount remote control model)

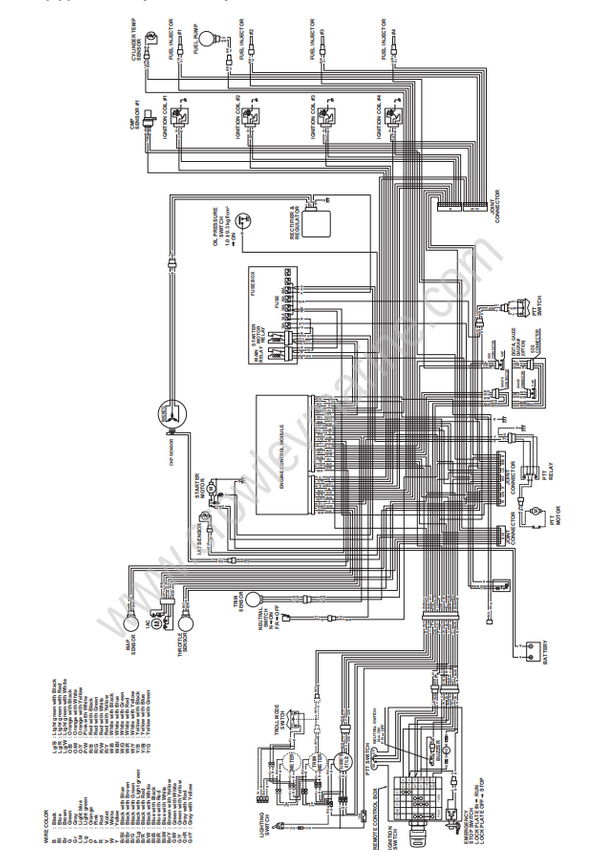

Equpped with keyless start system (Top mount remote control model)l

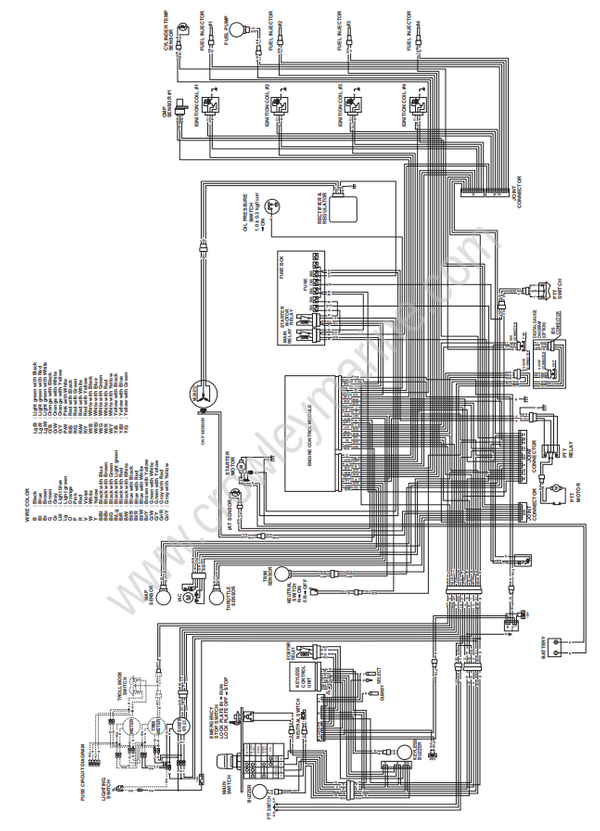

Not equpped with keyless start system
