Owner's Manual DF70AT-TH, DF90AT-TH, DF90A, DF70A Chart Of Total Operating Hours Indication

Added Jul 24, 2020Updated May 28, 2021
Owner's Manual DF70AT-TH, DF90AT-TH, DF90A, DF70A Chart Of Total Operating Hours Indication
Suzuki Marine

Owner's Manual

CHART OF TOTAL OPERATING HOURS INDICATION

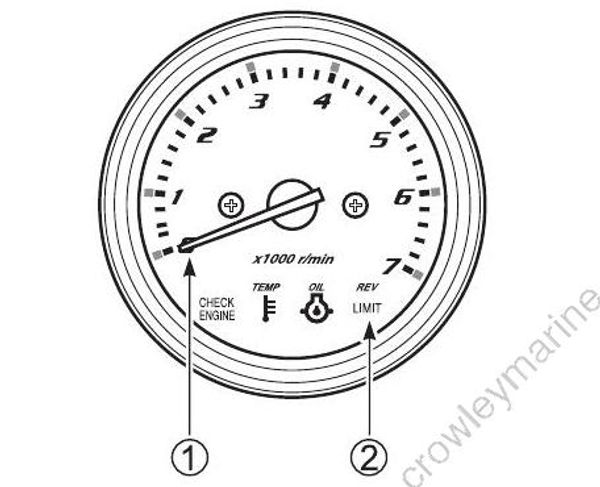

Total operating hours MONITOR-TACHOMETER MONITOR-TACHOMETER
Needle (1) indication REV-LIMIT lamp 2 flashing *
0 h- (49 h) No No
50 h- 500 r/min No
60 h- 600 r/min No
: : : : : :
540 h- 5400 r/min No
550 h- 500 r/min 1 time
560 h- 600 r/min 1 time
: : : : : :
1040 h- 5400 r/min 1 time
1050 h- 500 r/min 2 times
: : : : : :
1540 h- 5400 r/min 2 times
1550 h- 500 r/min 3 times
: : : : : :
2030 h- 5300 r/min 3 times
2040 h or over 5400 r/min 3 times

*: One flashing is corresponded to 500 hours.

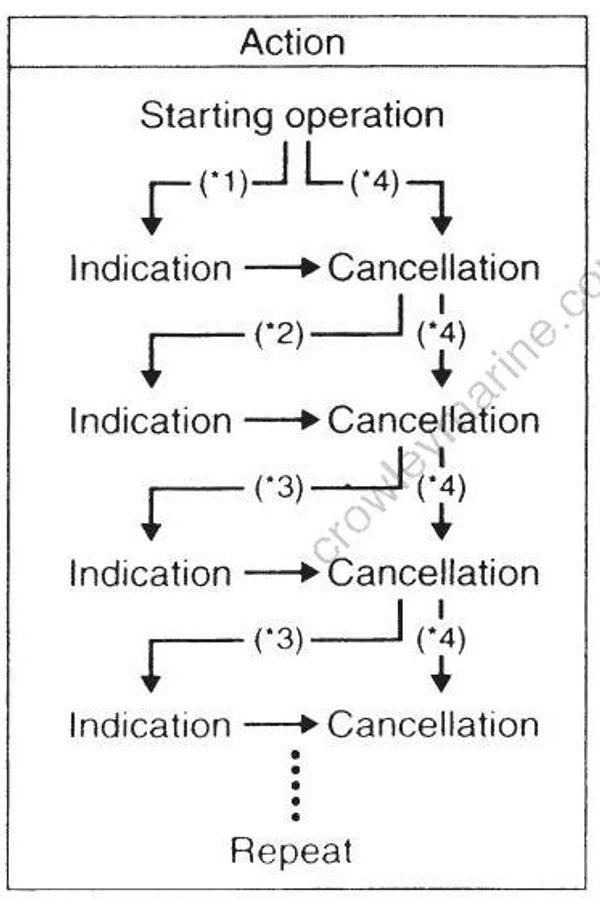

FLOWCHART OF OIL CHANGE REMINDER SYSTEM

*1 : Lapse of initial 20 hour’s operation

*2 : Lapse of 80 hour’s operation

*3 : Lapse of 100 hour’s operation

*4 : When performing cancellation before system activation
