Owner's Manual DF60A, DF40A, DF50A Oil Change Reminder System

If abnormal conditions exist in any sensor signal being sent to the control unit, the self-diagnostic system warns of the abnormal condition.

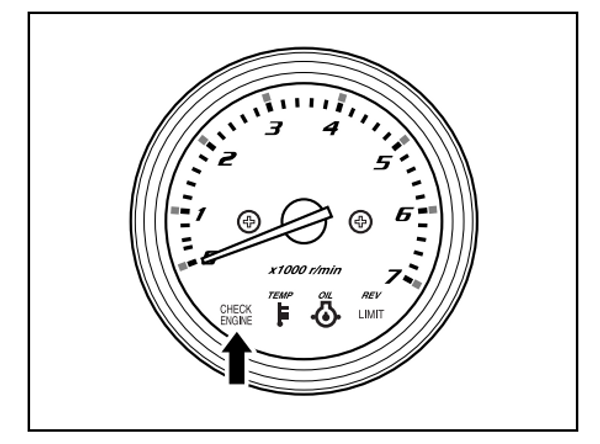

If this system activates, the red CHECK ENGINE lamp will flash and a buzzer will sound.

Also incorporated is a fail-safe provision that allows the operation at a restricted speed even under such a failure condition.

• The CHECK ENGINE lamp will light briefly when the ignition key is turned to the “ON” position.
• The failed system can be identified by the mode of the red CHECK ENGINE lamp flashing and buzzer sounding. This diagnostic code is designed to appear while the ignition key is turned on.
• The buzzer sound with diagnostic system activating will be cancelled by pushing the ignition key in.

If the diagnostic system activates while you are operating your outboard motor, there is an abnormal condition in one of the sensor signals of the control system.
Consult your authorized Suzuki marine dealer for repair of the control system.

This system informs the operator of the time for replacing engine oil on the basis of the maintenance schedule. The system is designed to register the total operating hours of the outboard motor and function its operation when the pre programmed hours have reached. (Refer to the INSPECTION AND MAINTENANCE section and the last page.)

SYSTEM ACTIVATION

When the total operating hours have reached the pre programmed hours, the OIL lamp will flash. If the engine is not running, the buzzer will begin a series of double beeps additionally. This indication will repeat until you cancel the system activation.

CANCELLATION

1. Turn the ignition key to the “ON” position.

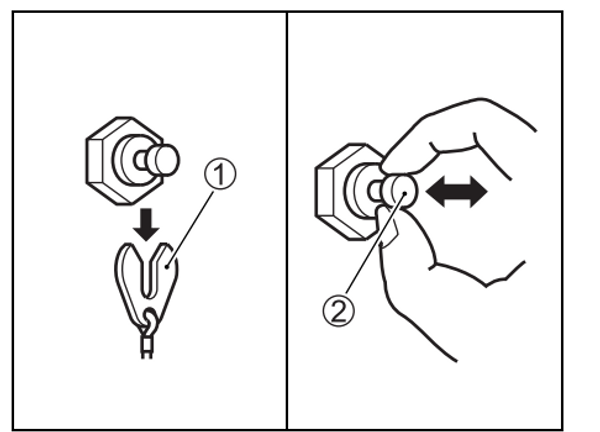

2. Pull out the emergency stop switch plate 1.
3. Pull up the emergency stop switch knob 2 three times in 10 seconds. A short beep will be heard if the cancellation is successfully finished.

4. Turn the ignition key to the “OFF” position.
5. Set the plate (1) in the original position.

• Canceling of the system activation is possible regardless of whether or not the engine oil has been replaced. Once the system has operated, however, Suzuki strongly recommends that the engine oil be replaced before canceling the system activation. • Even if the engine oil has been replaced with the system not operating, it is still necessary to perform the cancellation.

This system informs the operator when the motor stalls while it is operating. When the engine stalls for any reason, the caution buzzer sounds twice briefly.
