Step 1: MOTOR REMOVAL
If it is necessary to remove the outboard motor from your boat, we recommend that you ask your authorized Suzuki Marine Dealer to do the work for you.
Step 2: MOTOR TRANSPORTING
When transporting the motor, place the motor either vertically or horizontally.

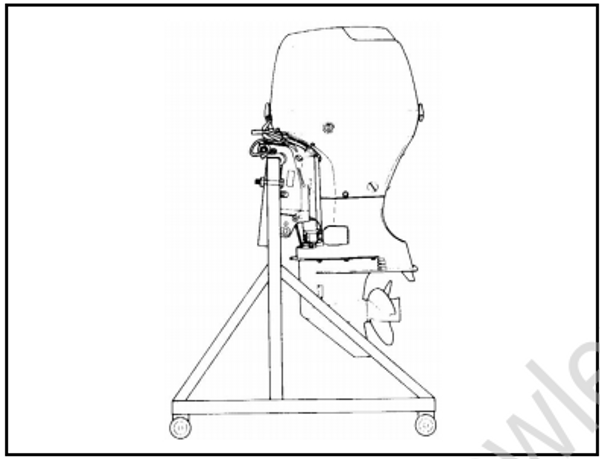

Vertical transport:
Attach the clamp bracket to a stand by securing two transom bolts.
Horizontal transport:

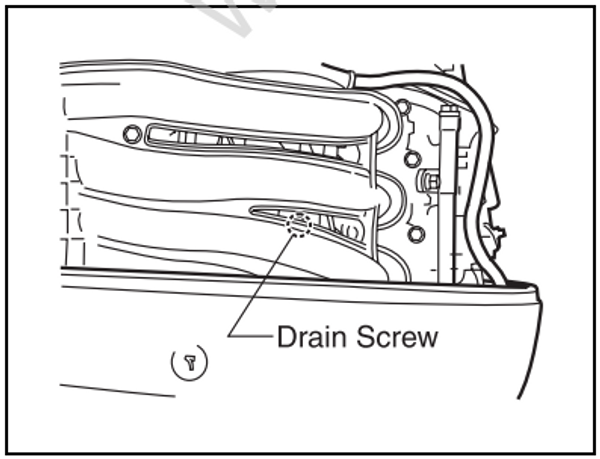

Drain the engine oil. Refer to the ENGINE OIL section.
Drain the gasoline from the vapor separator.
Consult your authorized Suzuki Marine Dealer.

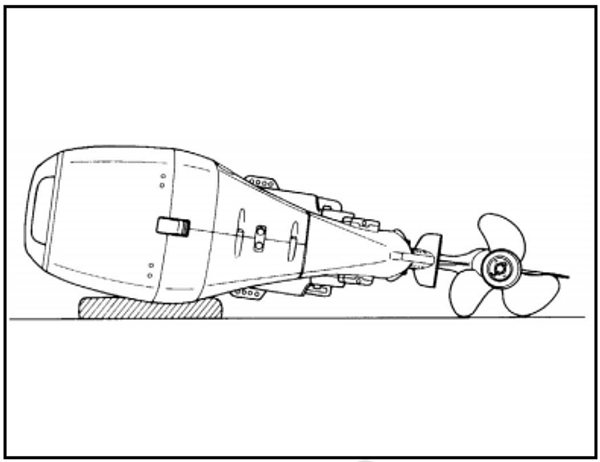

- Rest the motor on a case protector with the port (flush plug) side downwards as shown.
• Do not rest the engine before the engine oil has drained, as oil may enter the cylinder from the sump or outer casings may be damaged.
• Do not rest the engine before the cooling water has drained completely, as water may enter the cylinder through the exhaust port and cause problems.
Do not let the lower unit of the outboard sit higher than the power head during transporting or storing, or water may trickle into the power head, causing damage to the engine.
