FUSE
Turn the ignition key to the “off” position.

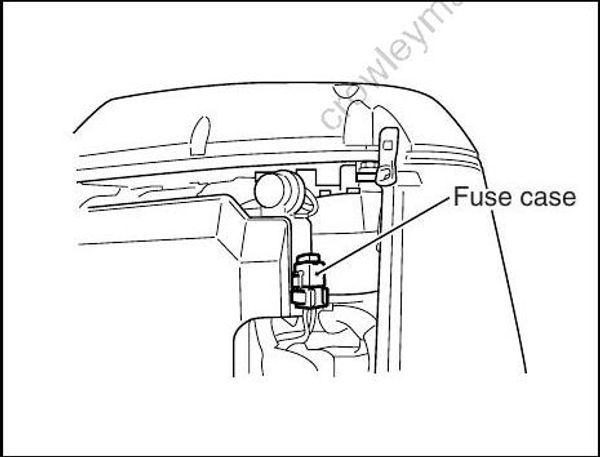

Remove the motor cover.

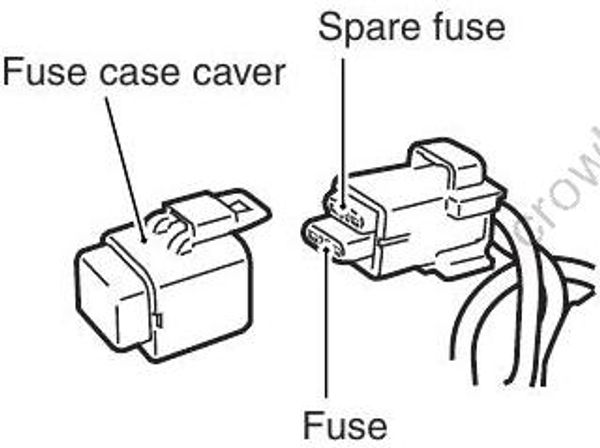

- Remove the fuse cover and pull off the fuse.

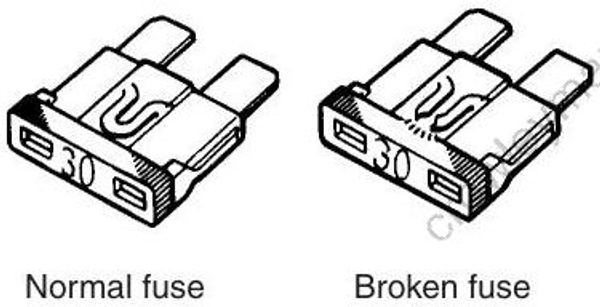

- Inspect the fuse and replace with new fuse if needed.
Always replace a blown fuse with a fuse of the same type and rating. If the new fuse blows in a short time, consult your Suzuki dealer or a qualified mechanic immediately.
SPECIFICATIONS
| Item | DF40 | DF50 |
|---|---|---|
| Engine Type | 4 Stroke | 4 Stroke |
| Number of Cylinders | 3 | 3 |
| Bore and Stroke | 71.0 × 68.6 mm (2.80 × 2.70 in.) | 71.0 × 68.6 mm (2.80 × 2.70 in.) |
| Piston Displacement | 815 cm3 (49.7 cu. in.) | 815 cm3 (49.7 cu. in.) |
| Maximum output | 29.4 kW (40PS) | 36.8 kW (50PS) |
| Full Throttle Operating Range | 5200 – 5800r/min. (min–1) | 5900 – 6500r/min. (min–1) |
| Idle speed (in Neutral) | 850 ± 50 r/min. (min–1) | 850 ± 50 r/min. (min–1) |
| Ignition System | Full-transistor | Full-transistor |
| Engine Lubrication | Trochoid pump pressure lubrication | Trochoid pump pressure lubrication |
| Engine Oil Capacity | 2.2 L (2.3/1.9 US/Imp. qt.) | Engine Oil Capacity |
Power rated in accordance with NMMA procedure.
