CHART OF TOTAL OPERATING HOURS INDICATION (REMOTE CONTROL MODEL)

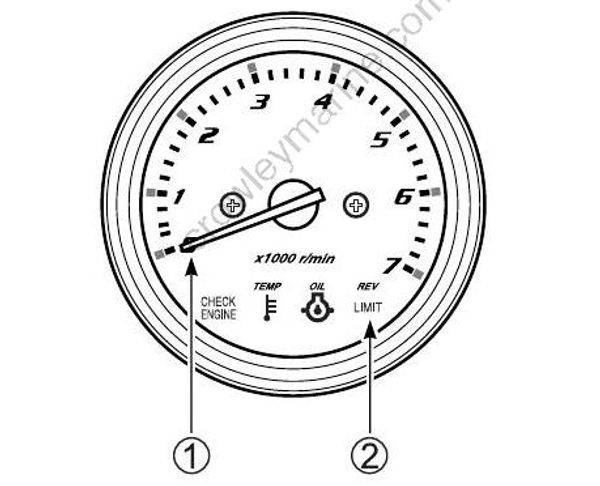

| Totaloperating hours | MONITOR-TACHOMETER | MONITOR-TACHOMETER |
|---|---|---|
| Needle 1indication | REV-LIMITlamp 2 flashing * | |
| 0h-(49h) | No | No |
| 50h- | 500rpm | No |
| 60h- | 600rpm | No |
| :: | :: | :: |
| 540h- | 5400rpm | No |
| 550h- | 500rpm | 1 time |
| 560h- | 600rpm | 1 time |
| :: | :: | :: |
| 1040h- | 5400rpm | 1 time |
| 1050h- | 500rpm | 2 times |
| :: | :: | :: |
| 1540h- | 5400rpm | 2 times |
| 1550h- | 500rpm | 3 times |
| :: | :: | :: |
| 2030h- | 5300rpm | 3 times |
| 2040h or over | 5400rpm | 3 times |
*: One flashing is corresponded to 500 hours.

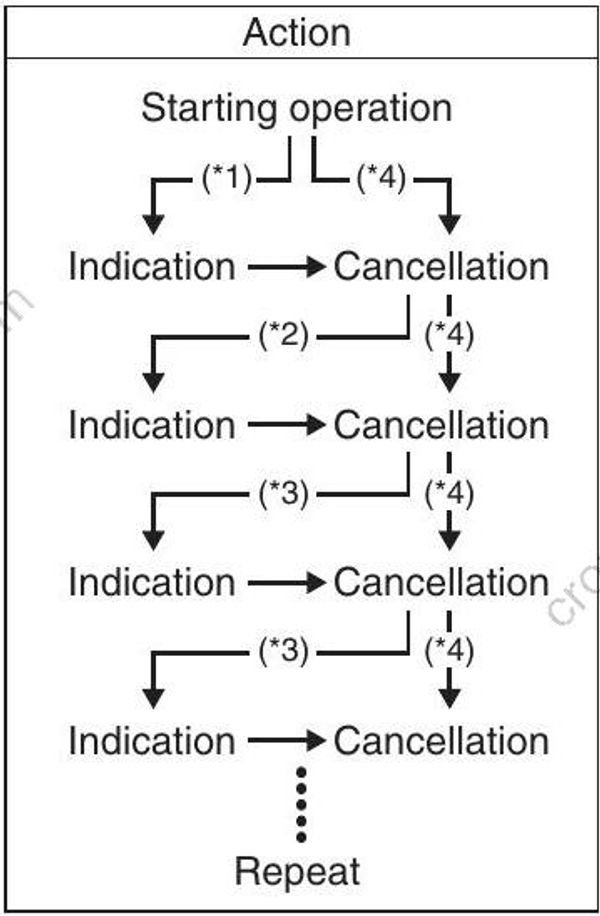

FLOWCHART OF OIL CHANGE REMINDER SYSTEM
*1: Lapse of initial 20 hour’s operation
*2: Lapse of 80 hour’s operation
*3: Lapse of 100 hour’s operation
*4: When performing cancellation before system activation
This system will activate up to 2100 hour’s operation.
