Owner's Manual DF350A Operation[Operating The Troll Mode]

Switching to TROLL Mode

Press and hold the [MENU] button during cruising operation at Trolling Speed (minimum speed), and this will switch the operation to TROLL Mode.

For the Trolling Speed, the desired engine speed can be set and maintained within the range from 600 r/min to 1200 r/min using the [⋀] or [⋁] button.

Please contact your authorized Suzuki Marine Dealer for more information.

Setting the Troll Mode

1. Shift into forward or reverse gear and make sure that the throttle is fully closed (in-gear idle speed).

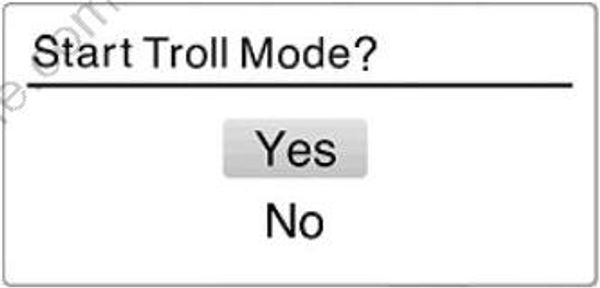

2. When the [MENU] button is pressed and held in the Multi-Function Gauge screen, the confirmation message “Start Troll Mode?” is displayed.

3. When “YES” is selected:

When “YES” is selected and the [SET] button is pressed, one beep sounds to show
that it is now in TROLL Mode. At the same time, the screen will change and display the specific TROLL Mode screen, and TROLL is displayed on the gauge screen. When the gauge screen displays “Engine Speed Screen” or “All Items Screen”, the engine speed screen automatically changes from an analog to a digital display.

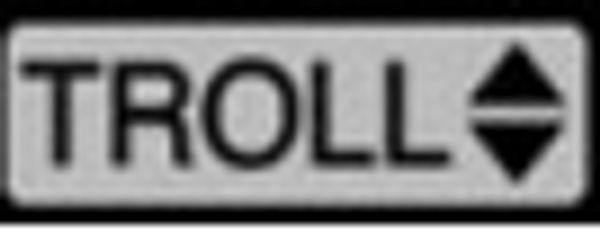

• This icon appears on the screen of the Multi-Function Gauge that was operated to get into the troll mode, and shows operatable Multi-Function Gauge of the troll mode.

• This icon appears on the screen of the Multi-Function Gauge(s) that did not be operated to get into the troll mode. This icon appears on the screen of the Multi-Function Gauge(s) that cannot operate the troll mode.

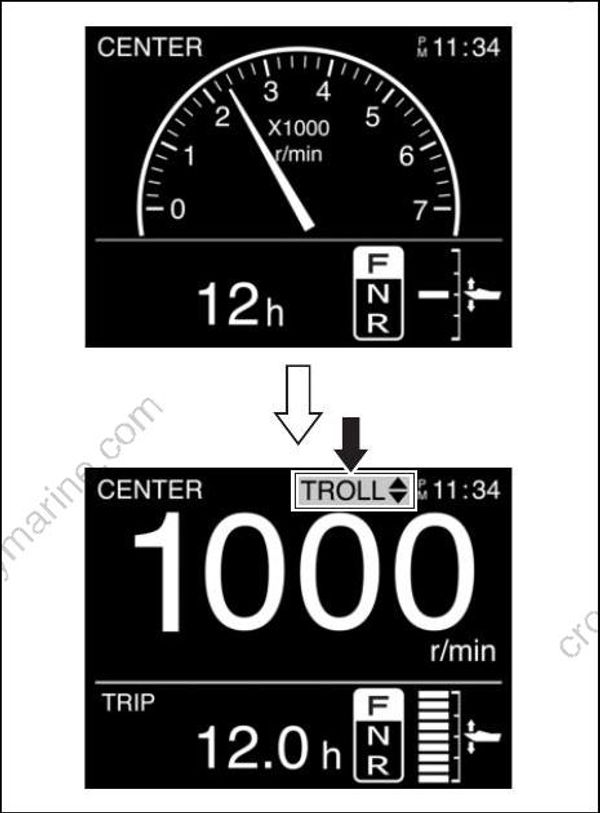

Example of the troll mode display on the Multi Function Gauge that can operate the troll mode.

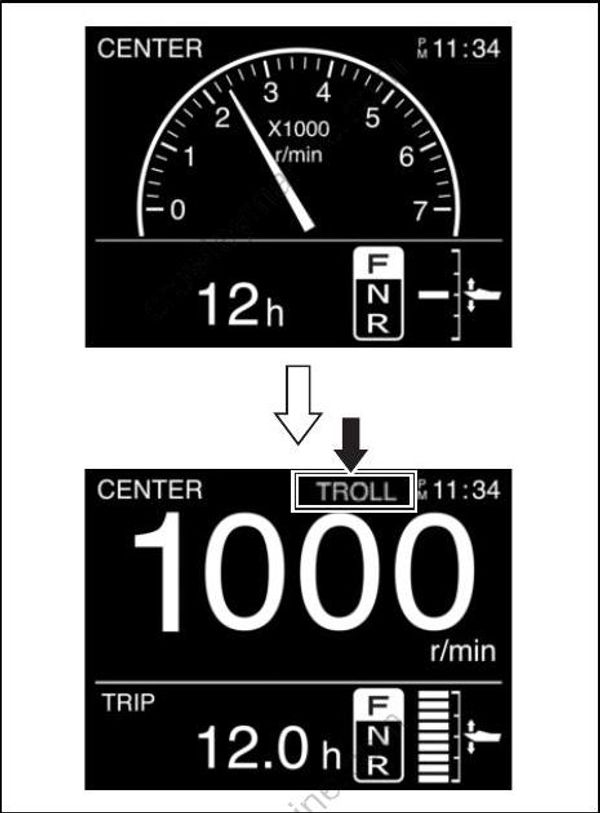

Example of the troll mode display on the Multi Function that cannot operate the troll mode.

• This system will not function properly until engine is at normal operating temperature.
• If the [MENU] button is pressed and held while the remote control lever is in neutral, the mode will not switch to TROLL Mode.
• For the multiple engines:
– If the throttle of all engines are fully closed and one of engines is in-gear, it shifts to the troll mode when the [MENU] button is pressed.
– In-gear idle speed of all engines is controlled at the same time.

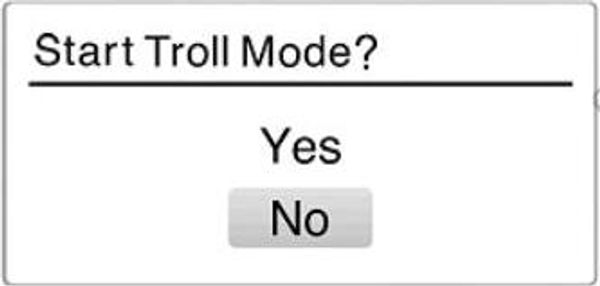

When “No” is selected:

When “No” is selected and the [SET] button is pressed, the display will return to the original gauge screen.

Adjusting Trolling Speed

• When pressing the [⋀] button, one short beep sounds and the engine speed
  increases by 50 r/min.

• When pressing the [⋁] button, one short beep sounds and the engine speed
  decreases by 50 r/min.

NOTE! • When pressing the [⋀] button at the lower limit of trolling speed of all engines, the engine speed will not change and three long
beeps will sound.
• When pressing the [⋁] button at the upper limit of trolling speed of all engines, the engine speed will not change and three long beeps will sound.
• For the multiple engines:
If the button is operated when one engine has reached the adjustment limit of trolling speed, while any other engine has not, one short beep sounds and the rpm of engine which has not reached the adjustment limit changes.
• Shift operation and throttle control remain operational, even in troll mode.

Cancelling the Troll Mode

The troll mode can be cancelled by shifting the all remote control levers to the neutral position, or by increasing the engine speed to 3000 r/min or more. In both cases, two short beeps sound when cancelling the troll mode.

Switching to TROLL Mode

Pressing and holding the “UP” or “DN” switch while cruising at Trolling Speed (minimum speed), will switch the mode to TROLL Mode. For the Trolling Speed, the desired engine speed can be set and maintained within the range from 600 r/min to 1200 r/min using the [UP] button or [DN] switch.

Please contact your authorized Suzuki Marine Dealer for more information.

Setting the Troll Mode

1. Shift into forward or reverse gear and make sure that the throttle is fully closed (in-gear idle speed).

2. Press the “UP” or “DN” position of the troll mode switch, until you hear one beep. At the same time, the Multi-Function Screen switches over to the TROLL Mode specific screen and TROLL is displayed on the gauge screen. When the gauge screen displays “Engine Speed Screen” or “All Items Screen”, the engine speed screen automatically changes from an analog to a digital display

• This system will not function properly until engine is at normal operating temperature.
• If the switch is pressed and held while the remote control lever is set to neutral, the mode will not switch to TROLL Mode.
• For the multiple engines:
– When the switch is pressed and held while all the engine throttles are fully closed and the clutch is engaged in only one of the engines, the mode will switch to TROLL mode.
– In-gear idle speed of all engines is controlled at the same time.

Adjusting Trolling Speed

• When pressing the “UP” switch, one short beep sounds and the engine speed
  increases by 50 r/min.

• When pressing the “DN” switch, one short beep sounds and the engine speed
  decreases by 50 r/min.

• When pressing the “DN” switch at the lower limit of trolling speed of all engines, the engine speed will not change and three long
beeps will sound.
• When pressing the “UP” switch at the upper limit of trolling speed of all engines, the engine speed will not change and three long beeps will sound.
• For the multiple engines:
If the switch is operated when one engine has reached the adjustment limit of trolling speed, while any other engine has not, one short beep sounds and the rpm of engine which has not reached the adjustment limit changes.
• Shift operation and throttle control remain operational, even in troll mode.

Cancelling the Troll mode:

The troll mode can be cancelled by shifting the all remote control levers to the neutral position, or by increasing the engine speed to 3000 r/min or more. In both cases, two short beeps sound when cancelling the troll mode.

After operating the motor in salt water, you should flush the water passages with clean, fresh water as outlined in the FLUSHING THE WATER PASSAGES section. If you do not flush the water passages, salt can corrode the motor and shorten its life.

When operating your outboard motor in freezing temperatures, you should keep the lower unit submerged in the water at all times.

When taking motor out of the water, stand it up in a vertical position until the cooling system drains completely.

If you leave your outboard motor out of the water in freezing temperatures with water still in the cooling system, the water can freeze and expand, causing severe damage to the motor.
When your outboard is in the water in freezing temperatures, keep the lower unit submerged in the water at all times. When the motor is stored out of the water in freezing temperatures stand it up in the vertical position so that the cooling system drains completely.
