Owner's Manual
Never operate your outboard motor when there is no water coming out of the pilot water hole, or severe damage can result. After starting the engine, check to make sure that there is water coming out of the pilot water hole.
Operating the boat when the emergency stop switch is not operating properly can be hazardous.
Before starting off, check to make sure that the emergency stop switch operates properly.
if equipped with Keyless Start System:
EMERGENCY START
One (1) emergency key is included in the main switch panel for the Keyless Start System.
If the key-fob is lost or the key-fob battery has run low, the Keyless Start System OFF (locked) state can be released by using the emergency key and entering the 4-digit passcode.

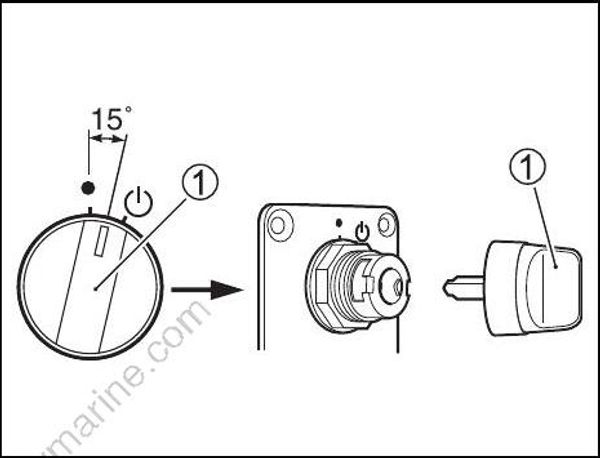

- Turn the main switch (1) to the right about 15° and pull it out.

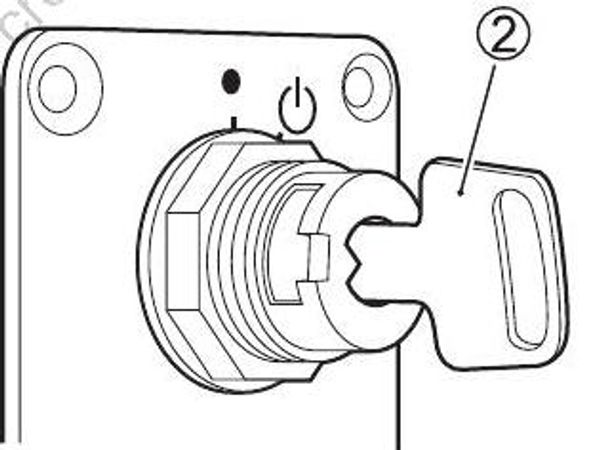

- Insert the emergency key (2) into the key cylinder.

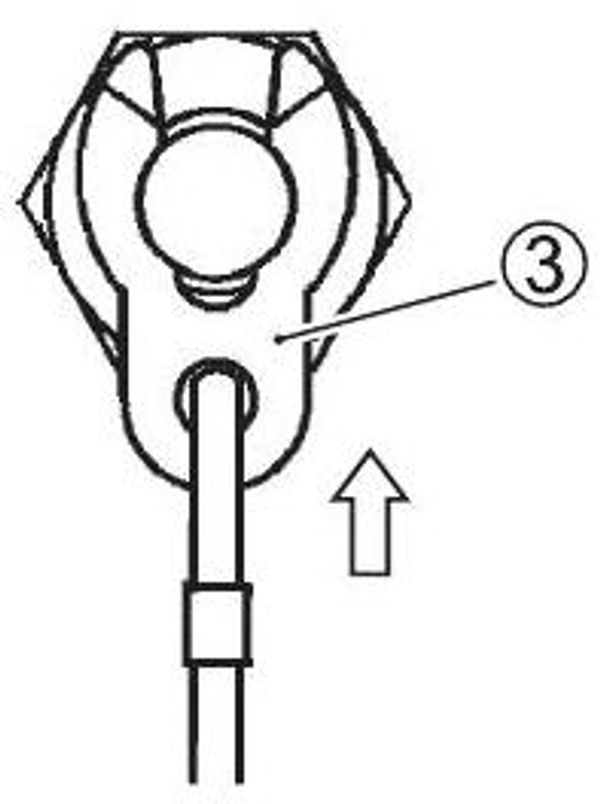

- Make sure lock plate (3) is in position.

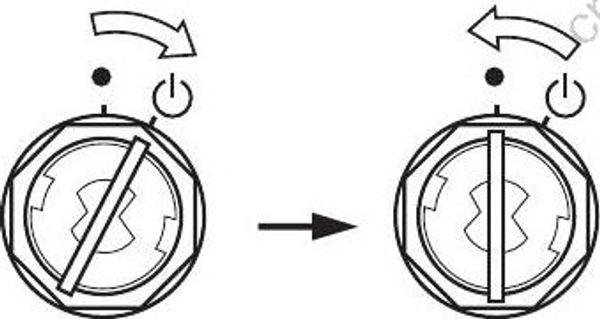

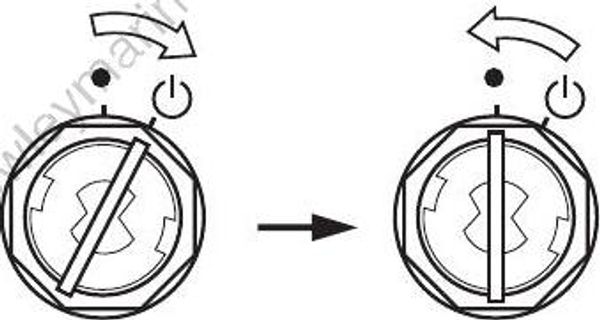

- Turn the emergency key to position, and then release it to the position. The buzzer emits one (1) long sound and five (5) short sounds.

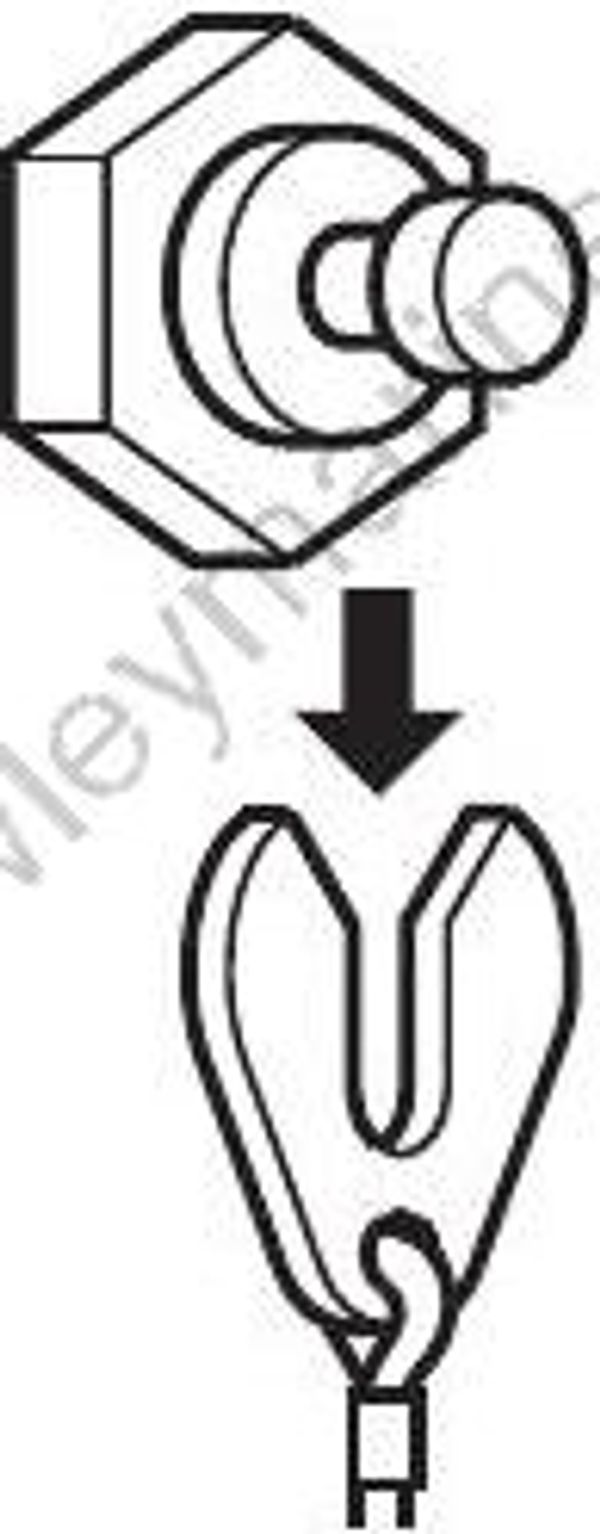

- Pull out the emergency stop switch lock plate.

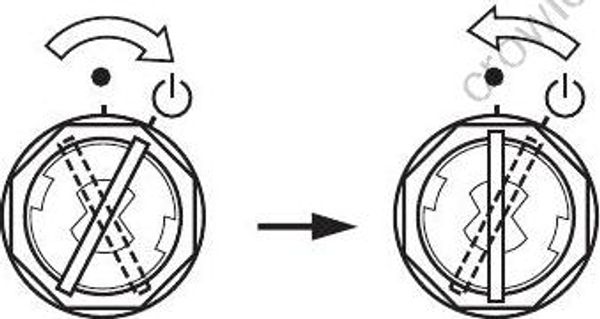

- Turn the emergency key to the position and hold it until the buzzer sounds.
Turn the emergency key back to the position. The system turns to stand-by state for passcode input.
- Take the following steps to enter the pass code.

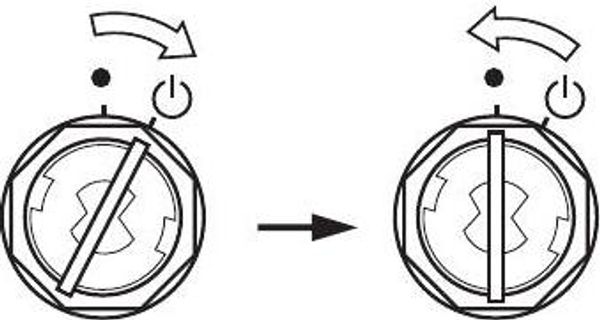

(1) Turn the main switch to the position and then release it. The main switch automatically returns to the position.

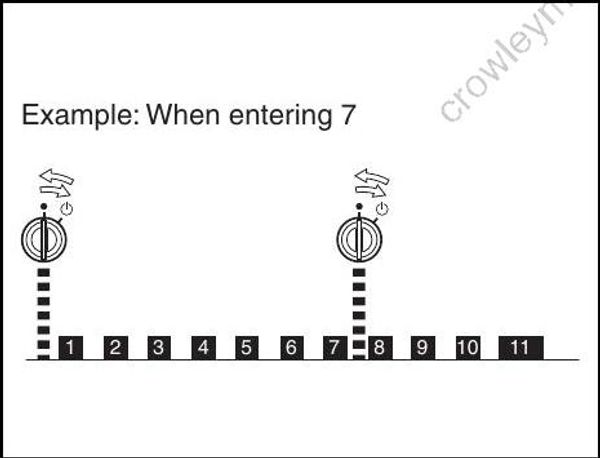

(2) The buzzer starts emitting short sounds. When the buzzer sounds for the same number of times as the 1st digit of the passcode, immediately turn the emergency key to the position, and release it to the position.
To enter “0” in the passcode, turn the switch after the buzzer sounds 10 times.
(3) After an 11th long sound, repeat steps 1 and 2 to enter the second, third and fourth passcode digits.
The buzzer emits one (1) short sound for the 1st digit, two (2) short sounds for the 2nd digit, three (3) short sounds for the 3rd digit, and four
(4) short sounds for the 4th digit.
If a wrong passcode is entered or the input operation fails, the buzzer emits a long sound after entering the 4th digit followed by three additional beeps, and the operation is cancelled.
• If the passcode input has not been performed, passcode input for the same digit will start again after the main switch is operated.
• The input operation is cancelled if no entry is made after repeating the passcode input operation three (3) times.
The buzzer then sounds three (3) times to notify that the input operation has been cancelled.
• To enter the passcode again after the input operation has been cancelled; repeat the procedure from Step 2.
• The passcode input can be interrupted by installing the lock plate on the emergency stop switch.

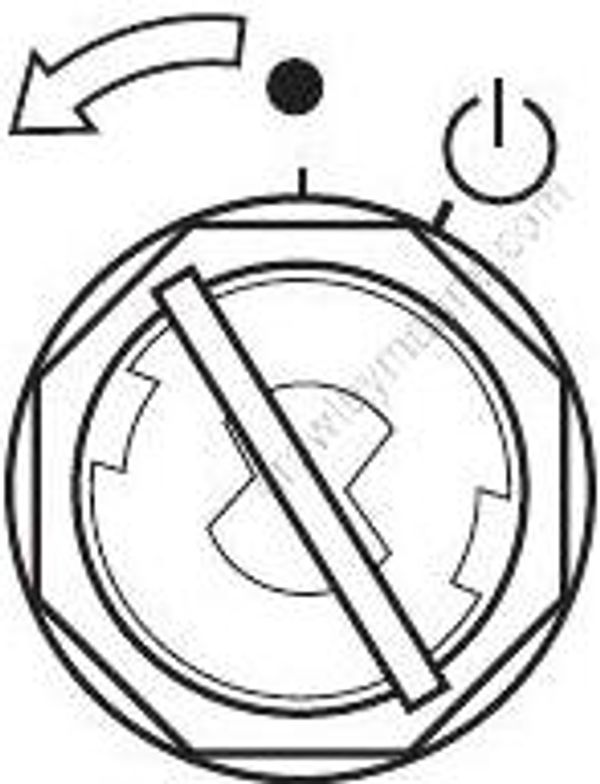

(4) Turn the emergency key to the counterclockwise within 10 seconds after entering the 4th digit of the passcode. The buzzer emits two (2) short sounds when the passcode input is successful, and the engine can then be started.
If the emergency key is not operated within 10 seconds, the buzzer sounds five (5) times followed by another beep, and the input operation is cancelled. In this case, repeat the procedure beginning at Step 2.
To start the engine:
(5) Install the lock plate (3) on the emergency stop switch.

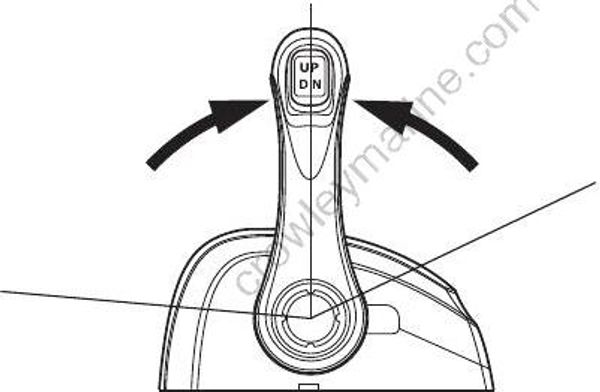

(6) Make sure the motor is in “NEUTRAL”.
(7) Push the START & STOP switch to start the engine.
To stop the engine:
Shift into “NEUTRAL”.
After operating at full throttle, cool off the engine a few minutes by allowing it to idle or troll at low speed.
Push the START & STOP switch to stop the engine.
Turn the emergency key to the position and then release it to the position to turn the Keyless Start System to OFF state. And then, pull out the emergency key from the key cylinder.
The passcode authentication state is maintained for 15 seconds after turning the emergency key to the position. In this state, the engine can be started by turning the emergency key to the left and pressing the START & STOP switch. To restart the engine when the 15-second period has elapsed after turning the emergency key to the position, repeat the emergency key operation from the beginning.
