LUBRICATION

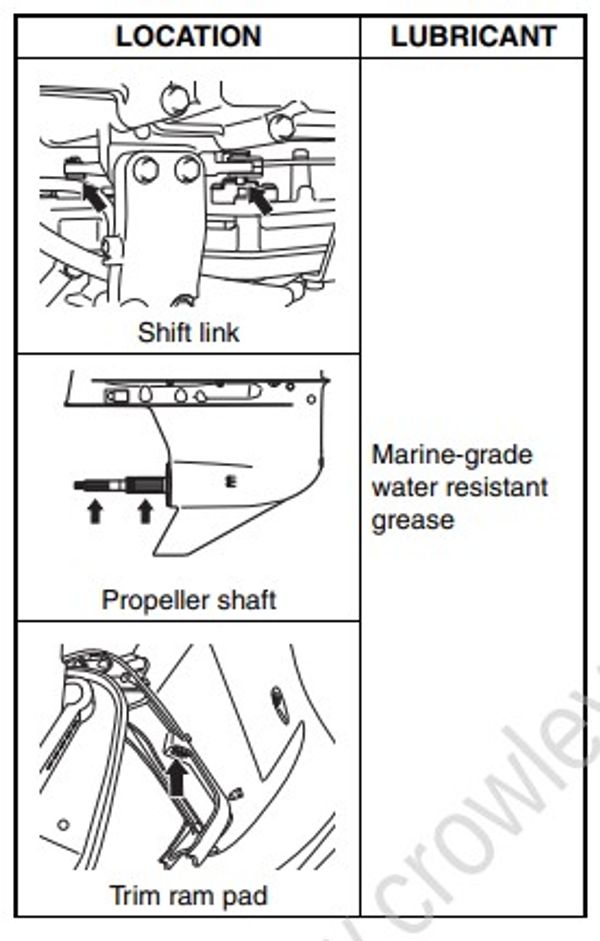

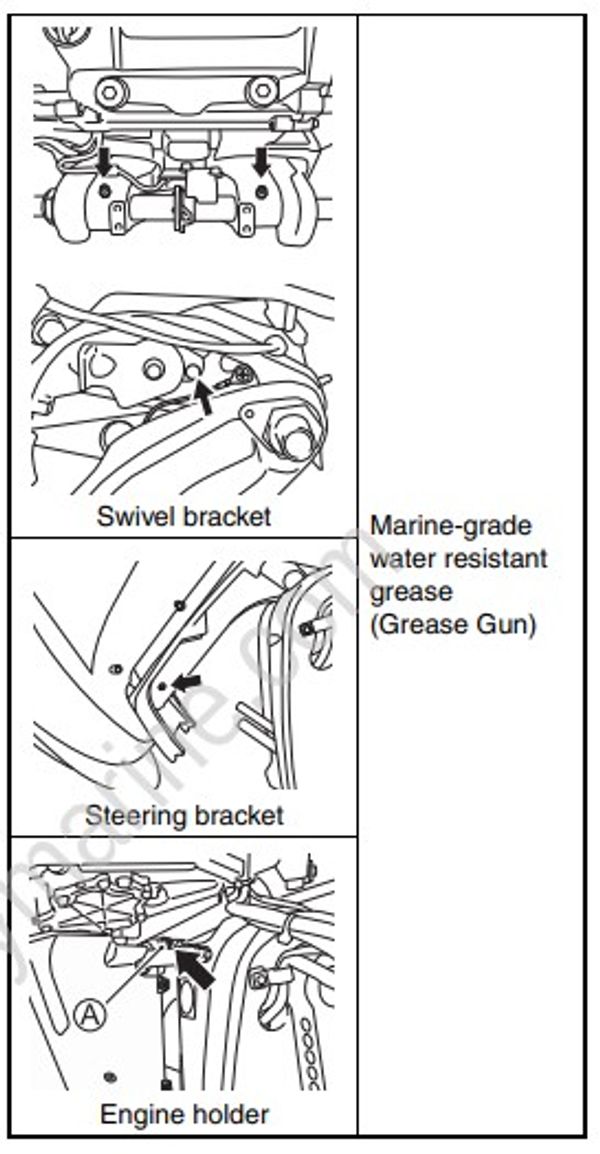

Proper lubrication is important for the safe, smooth operation and long life of each working part of your outboard motor. The following chart shows the lubrication points of your motor and the recommended lubricant:
Before applying grease through the steering bracket grease nipple, lock the motor in the fully tilted up position.
Use a hand operated grease gun and follow the steps below when servicing the grease nipple (A) on the engine holder.
Turn the engine off and allow it to cool.
Remove the motor cover.

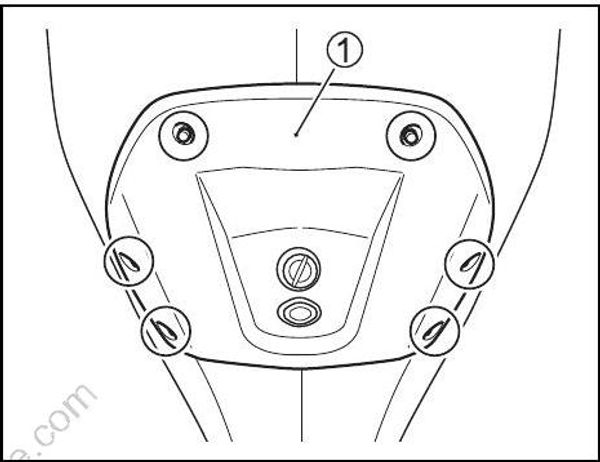

Remove the rear panel bolts and rear panel (1).

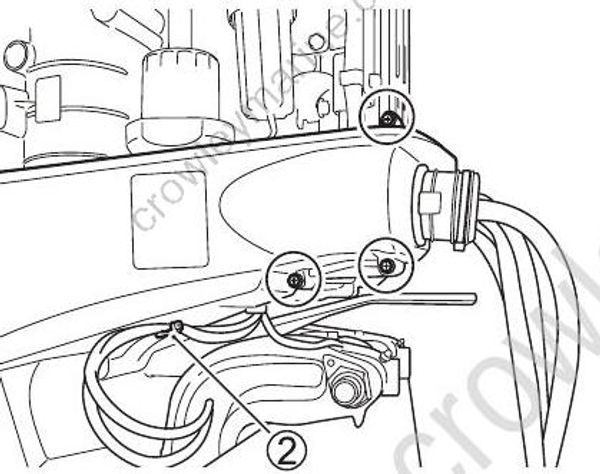

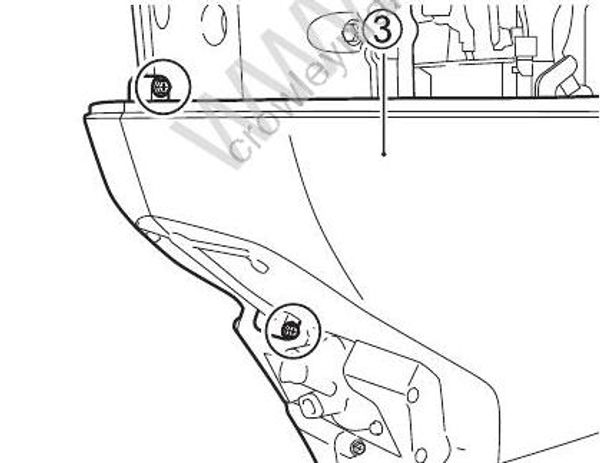

- Disconnect the PTT cables from the clamp (2). Remove the side cover bolts and starboard side cover (3).

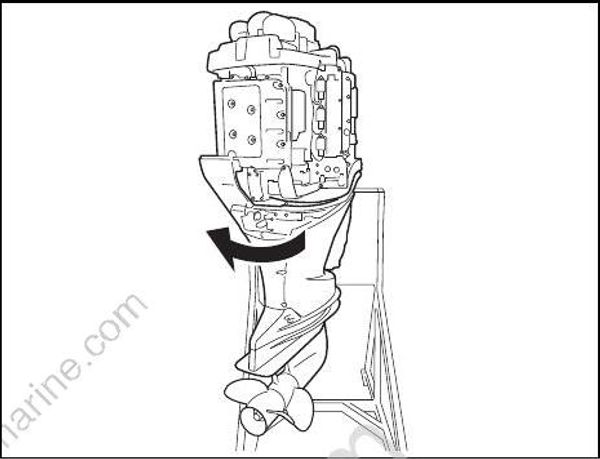

- Turn the boat handle to the left so that the outboard motor’s rudder angle becomes the largest.
- Inject approximately 10 grams of grease at initial 20 hours.
Inject approximately 5 grams of grease at every 100 hours (12 months).
Using a hydraulic or air powered grease gun to service the grease nipple (A) on the mount oil seal cover may cause damage to the oil seal.
Do not use powered grease guns when servicing grease nipple A on the mount
oil seal cover.
If grease will not inject into the fitting, consult your Authorized Suzuki Marine Dealer.
Your authorized Suzuki Marine Dealer may also have additional recommendations due to regional climate or operating conditions.
Please consult him for advice.
