Setting the Troll Mode
Shift into forward or reverse gear and make sure that the throttle is fully closed (in-gear idle speed).

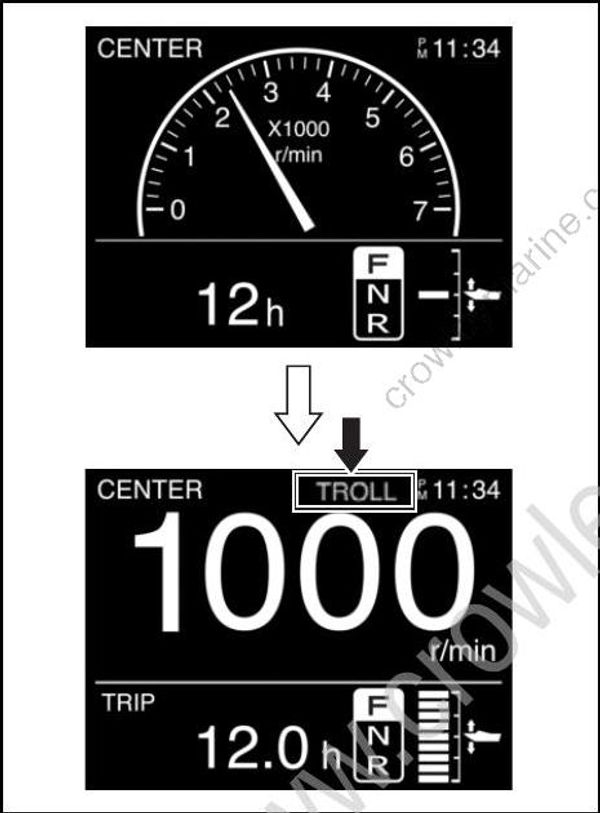

Press the “UP” or “DN” position of the troll mode switch, until you hear one beep. At the same time, the Multi-Function Screen switches over to the TROLL Mode specific screen and is displayed on the gauge screen. When the gauge screen displays “Engine Speed Screen” or “All Items Screen”, the engine speed screen automatically changes from an analog to a digital display.
● This system will not function properly until engine is at normal operating temperature.
● If the switch is pressed and held while the remote control lever is set to neutral, the mode will not switch to TROLL Mode.
● For the multiple engines:
– When the switch is pressed and held while all the engine throttles are fully closed and the clutch is engaged in only one of the engines, the mode will switch to TROLL mode.
– In-gear idle speed of all engines is controlled at the same time.
Adjusting Trolling Speed
● When pressing the “UP” switch, one short beep sounds and the engine speed
increases by 50 r/min.
● When pressing the “DN” switch, one short beep sounds and the engine speed
decreases by 50 r/min.
● When pressing the “DN” switch at the lower limit of trolling speed of all engines, the engine speed will not change and three long beeps will sound.
● When pressing the “UP” switch at the upper limit of trolling speed of all engines, the engine speed will not change and three long beeps will sound.
● For the multiple engines:
If the switch is operated when one engine has reached the adjustment limit of trolling speed, while any other engine has not, one short beep sounds and the rpm of engine which has not reached the adjustment limit changes.
● Shift operation and throttle control remain operational, even in troll mode.
Cancelling the Troll mode:
The troll mode can be cancelled by shifting the all remote control levers to the neutral position, or by increasing the engine speed to 3000 r/min or more. In both cases, two short beeps sound when cancelling the troll mode.
OPERATION IN SALT WATER
After operating the motor in salt water, you should flush the water passages with clean, fresh water as outlined in the FLUSHING THE WATER PASSAGES section. If you do not flush the water passages, salt can corrode the motor and shorten its life.
