Owner's Manual DF300 Specifications
(1) Ignition coil/Injector/Engine control module/ High pressure fuel pump fuse: 30 A
(2) Starter motor relay fuse: 30 A
(3) Throttle valve fuse: 15 A
(4) Shift actuator fuse: 15 A

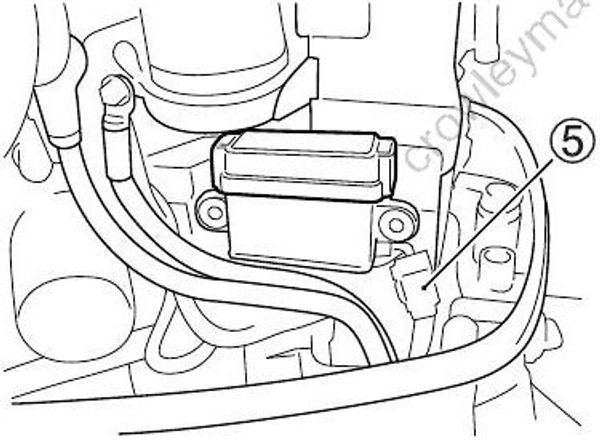

(5) PTT switch fuse: 10 A
(a) Main fuse: 60 A
(b) Isolator select fuse: 40 A
(c) Spare fuse: 60 A
(d) Spare fuse: 30 A
(e) Spare fuse: 15 A
(f) Sub battery cable fuse: 30 A SPECIFICATIONS
SPECIFICATIONS
| Item | DF300 |
|---|---|
| Engine Type | 4 Stroke |
| Number of Cylinders | 6 |
| Bore and Stroke | 98.0 × 89.0 mm (3.86 × 3.50 in.) |
| Piston Displacement | 4028 cm3 (245.7 cu. in.) |
| Maximum output | 220.7 kW (300PS) |
| Full Throttle Operating Range | 5700 – 6300 r/min. (min–1) |
| Idle speed (in Neutral) | 650 ± 50 r/min. (min–1) |
| Ignition System | Full-transistor |
| Engine Lubrication | Trochoid pump pressure lubrication |
| Engine Oil Capacity | 8.0 L (8.5/7.0 US/Imp. qt.) |
Power rated in accordance with NMMA procedure.
