Owner's Manual DF25A, DF30A Wiring Diagram

Added Jul 24, 2020Updated Jun 7, 2021
Owner's Manual DF25A, DF30A Wiring Diagram
Suzuki Marine

WIRING DIAGRAM

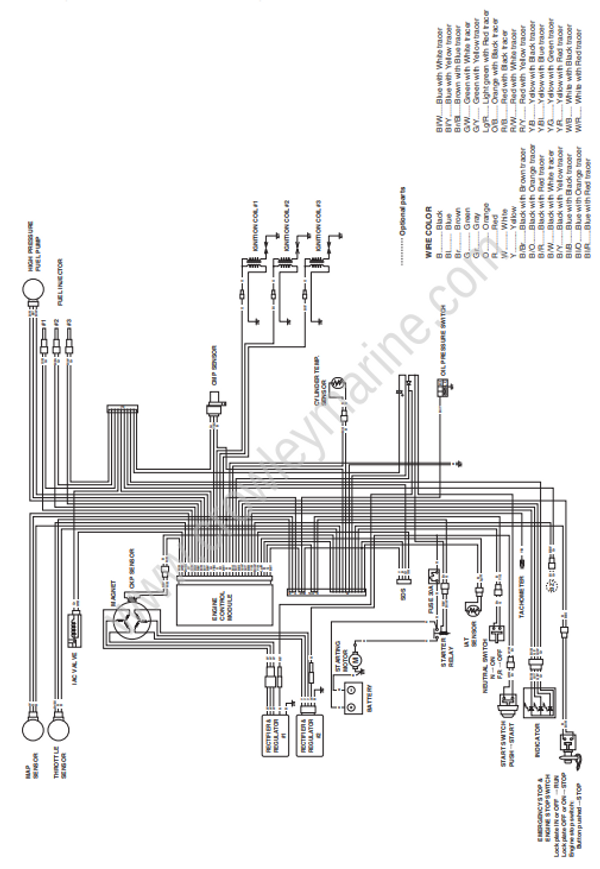

DF25A (RECOIL STARTER MODEL)

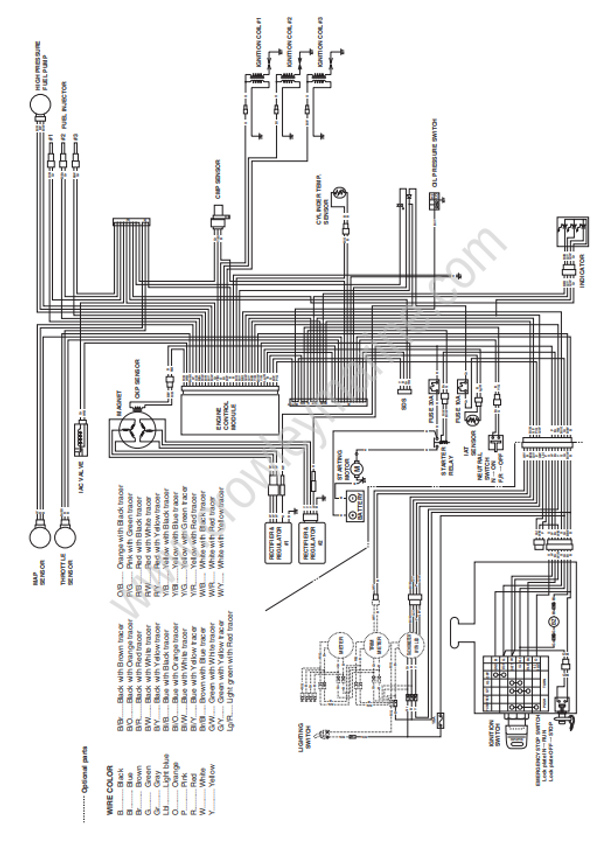

DF25A (ELECTRIC STARTER MODEL)

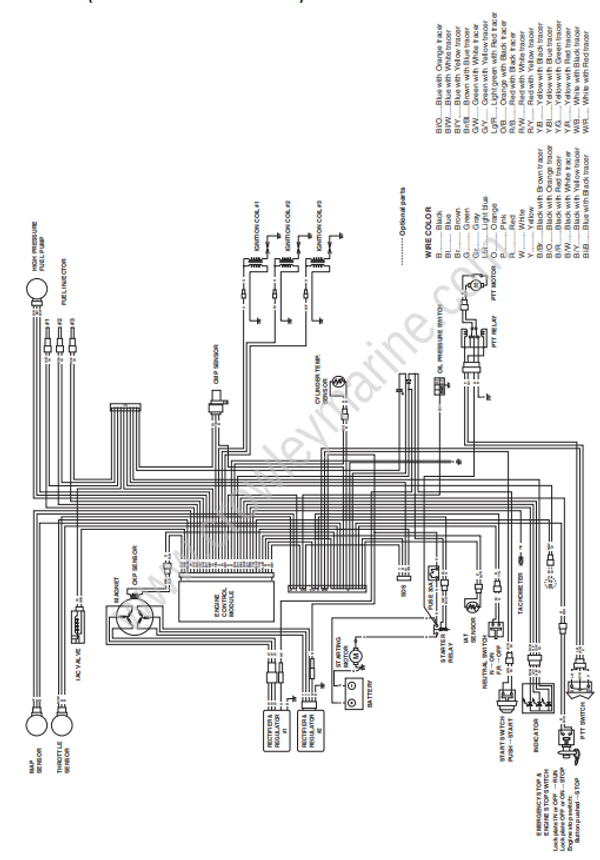

DF30ATH (POWER TRIM AND TILT MODEL)

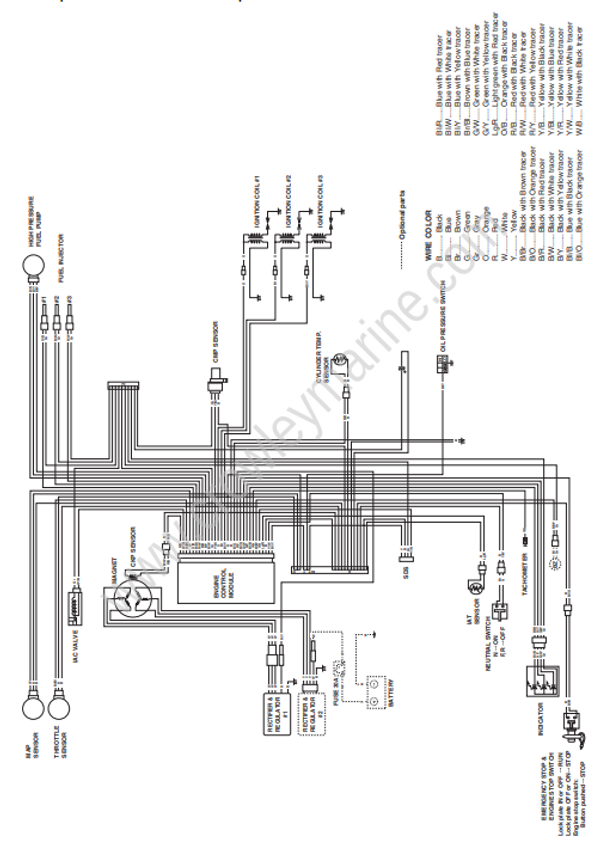

DF25AR (REMOTE CONTROL MODEL)

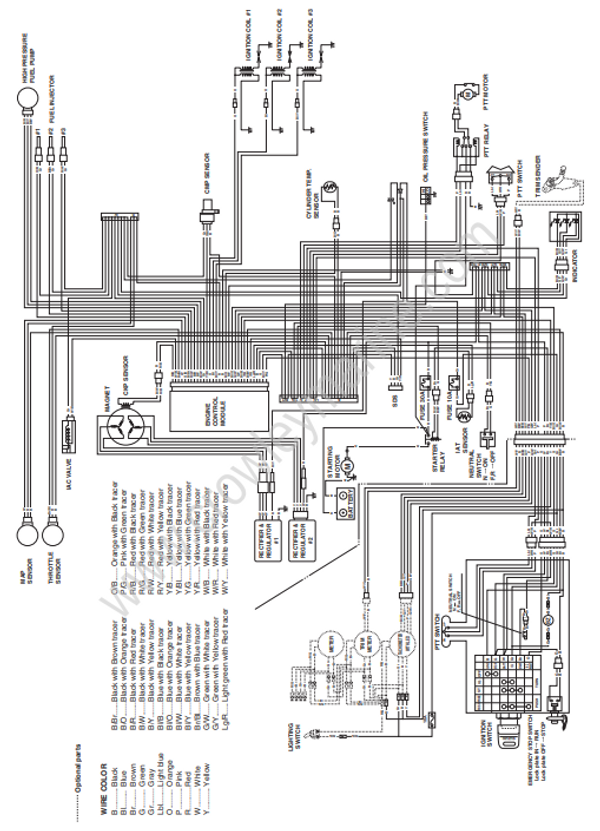

DF25AT/30AT (POWER TRIM AND TILT MODEL)
