Owner's Manual DF25A, DF30A Wiring Diagram

Added Jul 24, 2020Updated May 27, 2021
Owner's Manual DF25A, DF30A Wiring Diagram
Suzuki Marine

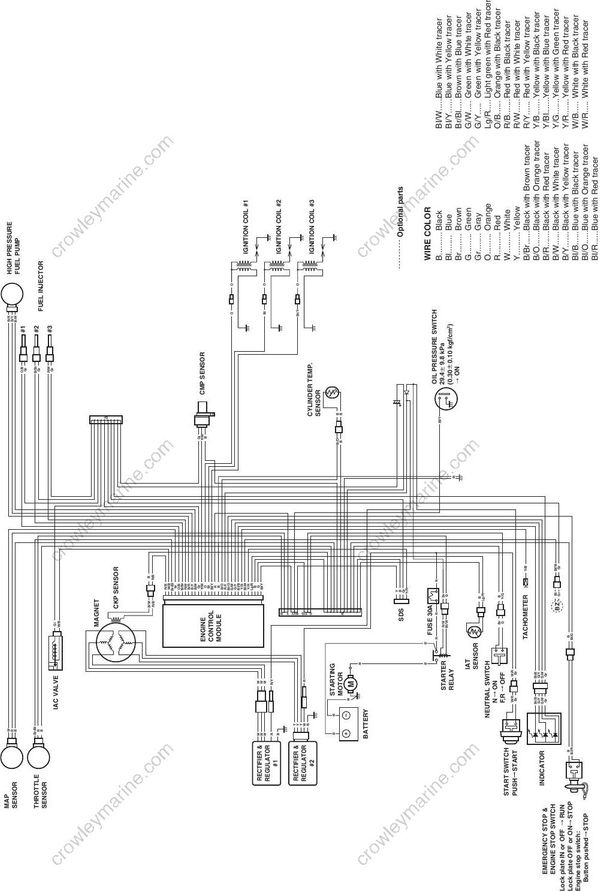

WIRING DIAGRAM

DF25A/25AQ (RECOIL STARTER MODEL)

DF25A/25AQ (ELECTRIC STARTER MODEL)

DF30ATH (POWER TRIM AND TILT MODEL)

DF25AR (REMOTE CONTROL MODEL)

DF25AT/30AT (POWER TRIM AND TILT MODEL)
