ENGINE STALLING CAUTION SYSTEM
REMOTE CONTROL MODEL
This system informs the operator when the motor stalls while it is operating.
When the engine stalls for any reason, the caution buzzer sounds three times.
OPERATION OF TILTING SYSTEMS
(DF25A/25AR)
RELEASE LEVER

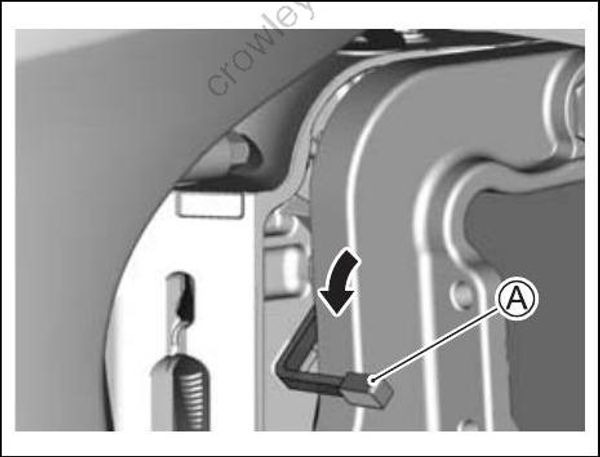

The release lever (A) has two positions.
“LOCK” Position (DOWN)
Use this position when “REVERSE” gear is engaged and in normal deep water operation where there is no likelihood of striking underwater objects. Placing the release lever in the “lock” position prevents the motor from lifting out of the water due to forces such as propeller thrust during operation in “REVERSE” gear or rapid deceleration.
If you strike an underwater object with the release lever in the “LOCK” position, your outboard motor or boat may be damaged.
When operating the motor in an area where you may encounter underwater objects, move the release lever to the “RELEASE” position and operate the motor only at very low speeds.
