IDENTIFICATION NUMBER LOCATION

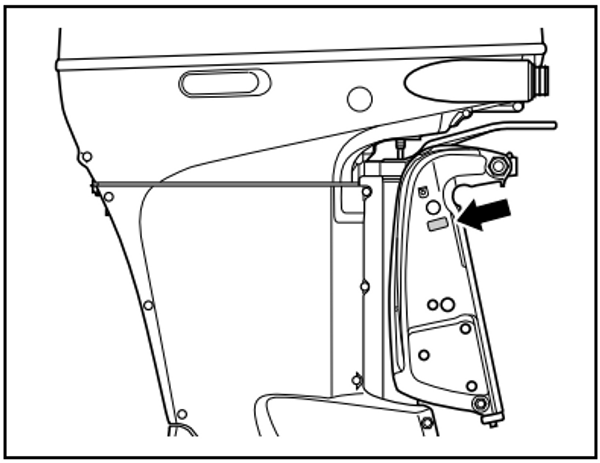

The model and identification numbers of your outboard motor are stamped on a plate attached to the clamp bracket. Record these numbers below for future reference. It is important to know these numbers when you place a parts order or if your motor is stolen.
Model Number:
Identification Number:
Main switch key Number:
EMISSION CONTROL INFORMATION
● THIS ENGINE IS CERTIFIED TO OPERATE ON UNLEADED GASOLINE OF 89 OCTANE ((R+M)/2 METHOD) OR GREATER.
● EXHAUST EMISSION CONTROL SYSTEM: ECM, MFI, HO2S
TROUBLESHOOTING
This troubleshooting guide is provided to help you find the cause of common complaints.
Failure to troubleshoot a problem correctly can damage your outboard motor. Improper repairs or adjustments may damage the outboard motor instead or fixing it. Such damage may not be covered under warranty.
If you are not sure about the proper action to correct a problem, consult your Suzuki marine dealer.
Starter motor will not operate:
● Emergency stop switch lock plate is not in position.
● Starter relay fuse is blown out.
● Sub battery cable fuse is blown out.
● Control handle is not in NEUTRAL.
● Battery terminal connection is corroded or lost.
● Battery power is lost.
● Starter motor is failed.
● Main switch or start & stop switch is failed.
● Electric wiring connection is loose.
