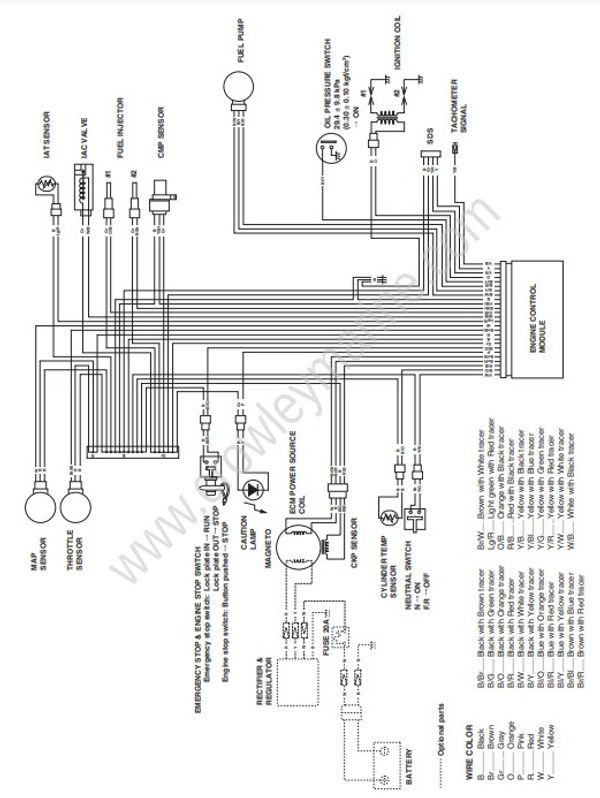

WIRING DIAGRAM
DF9.QB/15Al20A (RECOIL STARTER MODEL)
WIRE COLOR
B.......... Black
Br........Brown
Gr........Gray
O.........Orange
P..........Pink
R..........Red
W.........White
Y..........Yellow
B/Br......Black with Brown tracer
B/G......Black with Green tracer
B/O.......Black with Orange tracer
B/R.......Black with Red tracer
B/W......Black with White tracer
B/Y.......Black with Yellow tracer
BI/O......Blue with Orange tracer
BI/R......Blue with Red tracer
BI/Y......Blue with Yellow tracer
Br/Bl.....Brown with Blue tracer
Br/R.....Brown with Red tracer
Br/W.....Brown with White tracer
Lg/R.....Light green with Red tracer
O/B......Orange with Black tracer
R/B.......Red with Black tracer
Y/B.......Yellow with Black tracer
Y/Bl.......Yellow with Blue tracer
Y/G.......Yellow with Green tracer
Y/R.......Yellow with Red tracer
Y/W......Yellow with White tracer
W/B.....White with Black tracer

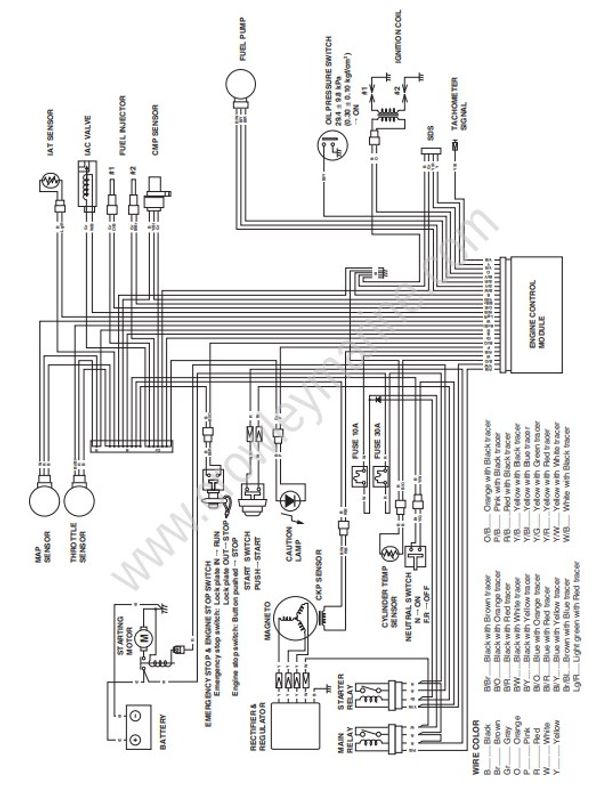

DF9.9BE/15AE/20AE (ELECTRIC STARTER MODEL)
WIRE COLOR
B..........Black
Br........Brown
Gr........Gray
O.........Orange
P..........Pink
R..........Red
W.........White
Y..........Yellow
B/Br......Black with Brown tracer
B/O.......Black with Orange tracer
B/R.......Black with Red tracer
B/W......Black with White tracer
B/Y.......Black with Yellow tracer
BI/O......Blue with Orange tracer
BI/R......Blue with Red tracer
BI/Y......Blue with Yellow tracer
Br/Bl.....Brown with Blue tracer
Lg/R.....Light green with Red tracer
O/B......Orange with Black tracer
P/B......Pink with Black tracer
R/B.......Red with Black tracer
Y/B.......Yellow with Black tracer
Y/Bl.......Yellow with Blue tracer
Y/G......Yellow with Green tracer
Y/R.......Yellow with Red tracer
Y/W......Yellow with White tracer
W/B.....White with Black tracer

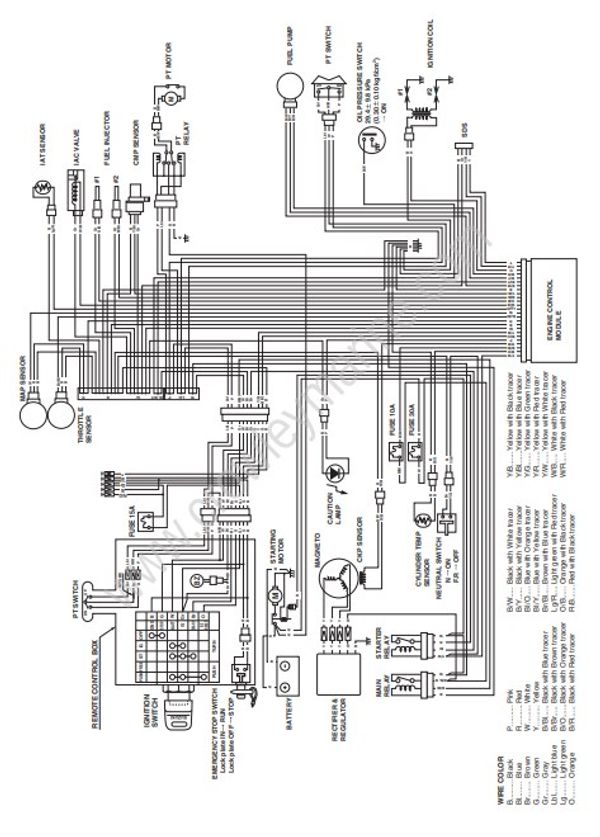

DF9.9BTH/15ATH/20ATH (POWER TILT MODEL)
WIRE COLOR
B..........Black
Br........Brown
Gr........Gray
Lbl.......Light Blue
O.........Orange
P..........Pink
R..........Red
W.........White
Y..........Yellow
B/Br......Black with Brown tracer
B/O.......Black with Orange tracer
B/R.......Black with Red tracer
B/W......Black with White tracer
B/Y.......Black with Yellow tracer
BI/O......Blue with Orange tracer
BI/R......Blue with Red tracer
BI/Y......Blue with Yellow tracer
Br/Bl.....Brown with Blue tracer
Lg/R.....Light green with Red tracer
O/B......Orange with Black tracer
P/B......Pink with Black tracer
R/B.......Red with Black tracer
Y/B.......Yellow with Black tracer
Y/Bl.......Yellow with Blue tracer
Y/G......Yellow with Green tracer
Y/R.......Yellow with Red tracer
Y/W......Yellow with White tracer
W/B.....White with Black tracer
W/R.....White with Red tracer
DF9.9BR/15AR/20AR (REMOTE CONTROL MODEL)
WIRE COLOR
B..........Black
Br........Brown
Gr........Gray
O.........Orange
P..........Pink
R..........Red
W.........White
Y..........Yellow
B/Bl......Black with Blue tracer
B/Br......Black with Brown tracer
B/O.......Black with Orange tracer
B/R.......Black with Red tracer
B/W......Black with White tracer
B/Y.......Black with Yellow tracer
BI/O.....Blue with Orange tracer
BI/Y......Blue with Yellow tracer
Br/Bl.....Brown with Blue tracer
Lg/R.....Light green with Red tracer
O/B......Orange with Black tracer
R/B.......Red with Black tracer
Y/B.......Yellow with Black tracer
Y/Bl......Yellow with Blue tracer
Y/G......Yellow with Green tracer
Y/R.......Yellow with Red tracer
Y/W......Yellow with White tracer
W/B......White with Black tracer
DF9.9BT/20AT (POWER TILT MODEL)
WIRE COLOR
B..........Black
Bl........Blue
Br........Brown
G.........Green
Gr........Gray
Lbl.......Light Blue
Lg........Light Green
O.........Orange
P..........Pink
R..........Red
W.........White
Y..........Yellow
B/Bl......Black with Blue tracer
B/Br.....Black with Brown tracer
B/O.......Black with Orange tracer
B/R......Black with Red tracer
B/W.....Black with White tracer
B/Y......Black with Yellow tracer
BI/O.....Blue with Orange tracer
BI/Y......Blue with Yellow tracer
Br/Bl.....Brown with Blue tracer
Lg/R.....Light green with Red tracer
O/B......Orange with Black tracer
R/B.......Red with Black tracer
Y/B.......Yellow with Black tracer
Y/Bl.......Yellow with Blue tracer
Y/G......Yellow with Green tracer
Y/R.......Yellow with Red tracer
Y/W......Yellow with White tracer
W/B.....White with Black tracer
W/R.....White with Red tracer
