KEYLESS START SYSTEM CAUTION SYSTEM (IF EQUIPPED WITH KEYLESS START SYSTEM)
KEY-FOB CAUTION SYSTEM
The caution system is activated when key-fob identification error.

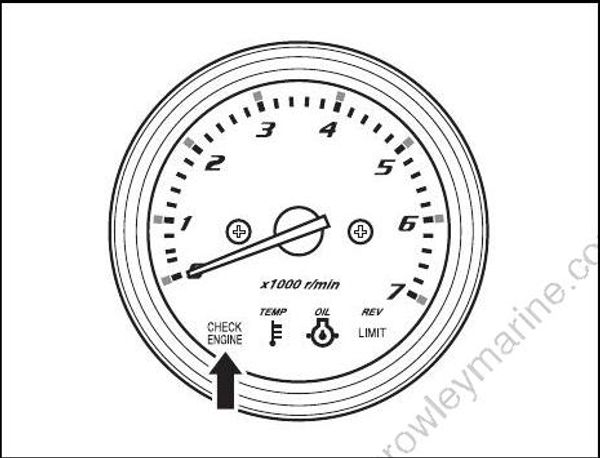

If this system activates, the red CHECK ENGINE lamp will flash.
• If this system activates, check the following:
– The key-fob is within the communication range of the keyless control unit.
– The key-fob is in communication mode. (Refer to “Switching the communication mode of the key-fob” section.)
– There is no object interfering with the radio wave between the key-fob and the keyless control unit.
– The key-fob battery has sufficient capacity.
– The correct key-fob has been authenticated by the Keyless Start System.
• If this caution system activates continuously, contact your authorized Suzuki Maine Dealer.
KEY-FOB BATTERY CAUTION SYSTEM
The caution system is activated when key-fob battery voltage drops to a point which could impair key-fob performance.

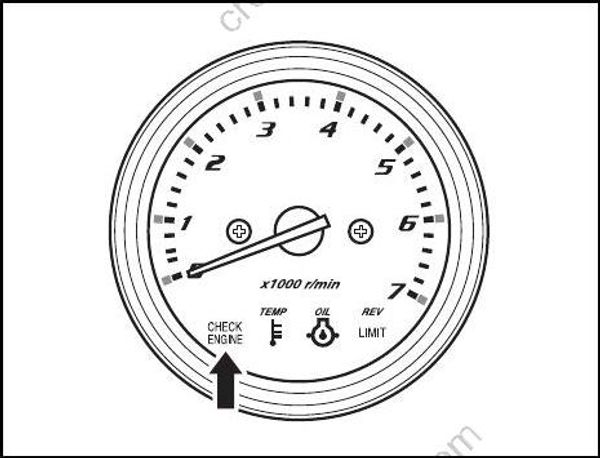

If this system activates, the red CHECK ENGINE lamp will flash.
If this system activates, replace the battery of key-fob. (Refer to KEY-FOB BATTERY REPLACEMENT section.)
KEYLESS CONTROL UNIT CAUTION SYSTEM
This system is activated when the 12 volt battery voltage to the keyless control unit drops to a point which could impair the keyless control unit performance.

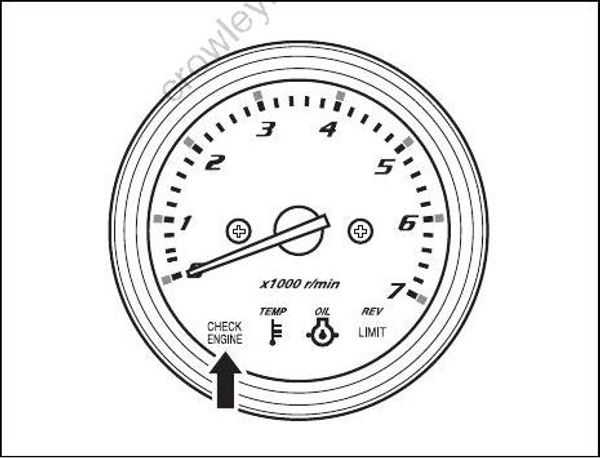

If this system activates, the red CHECK ENGINE lamp will flash.
• If this system activates, check the following:
– The 12 volt battery is in sound condition.
– Contact failure of the battery terminal.
• If this caution system activates continuously, consult your authorized Suzuki Maine Dealer.
DIAGNOSTIC SYSTEM
If abnormal conditions exist in any sensor signal being sent to the control unit, the self-diagnostic system warns of the abnormal condition.

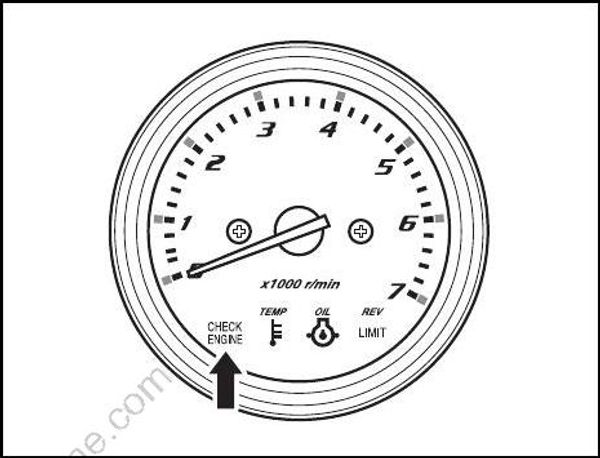

If this system activates, the red CHECK ENGINE lamp will flash and a buzzer will sound.
Also incorporated is a fail-safe provision that allows the operation at a restricted speed even under such a failure condition.
If equipped with Keyless Start System:
• The CHECK ENGINE lamp will light briefly when the Keyless Start System is in ON state.
• The failed system can be identified by the mode of the red CHECK ENGINE lamp flashing and buzzer sounding.
The buzzer sounds for 60 seconds when the Diagnostic System is activated, then it stops automatically.
• This diagnostic code is designed to appear while the Keyless Start System is in ON state.
