CHART OF TOTAL OPERATING HOURS INDICATION

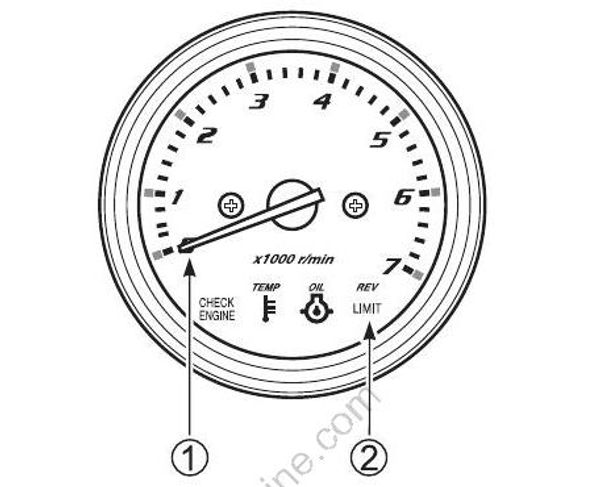

| Total operating hours | MONITOR-TACHOMETER Needle (1) indication | MONITOR-TACHOMETER REV-LIMIT lamp (2) flashing * |
|---|---|---|
| 0h-(49h) | No | No |
| 50h- | 500 r/min | No |
| 60h- | 600 r/min | No |
| : : |
: : |
: : |
| 540h- | 5400 r/min | No |
| 550h- | 500 r/min | 1 time |
| 560h- | 600 r/min | 1 time |
| : : |
: : |
: : |
| 1040h- | 5400 r/min | 1 time |
| 1050h- | 500 r/min | 2 times |
| : : |
: : |
: : |
| 1540h- | 5400 r/min | 2 times |
| 1550h- | 500 r/min | 3 times |
| : : |
: : |
: : |
| 2030h- | 5300 r/min | 3 times |
| 2040h or over | 5400 r/min | 3 times |
*: One flashing is corresponded to 500 hours.

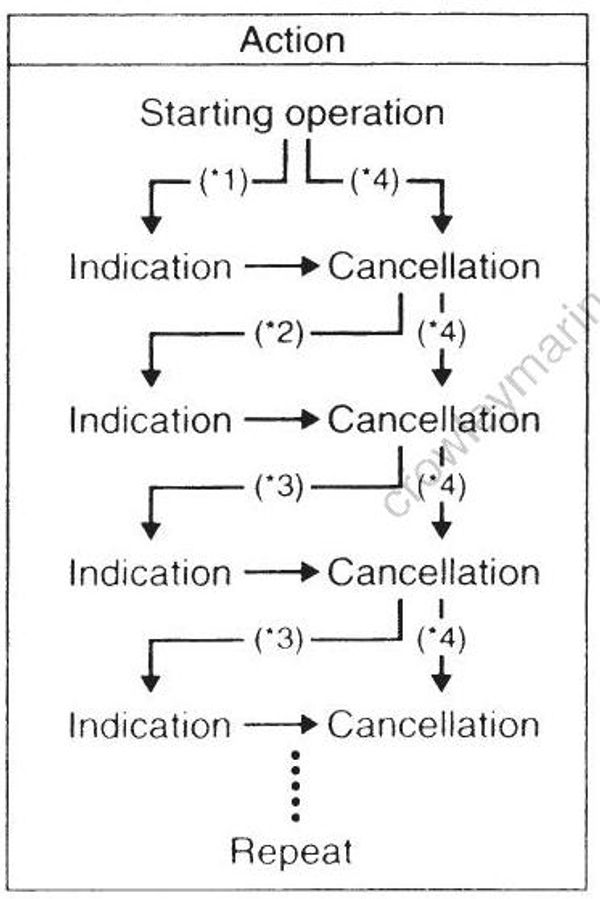

FLOWCHART OF OIL CHANGE REMINDER SYSTEM
*1: Lapse of initial 20 hour’s operation
*2: Lapse of 80 hour’s operation
*3: Lapse of 100 hour’s operation
*4: When performing cancellation before system activation
