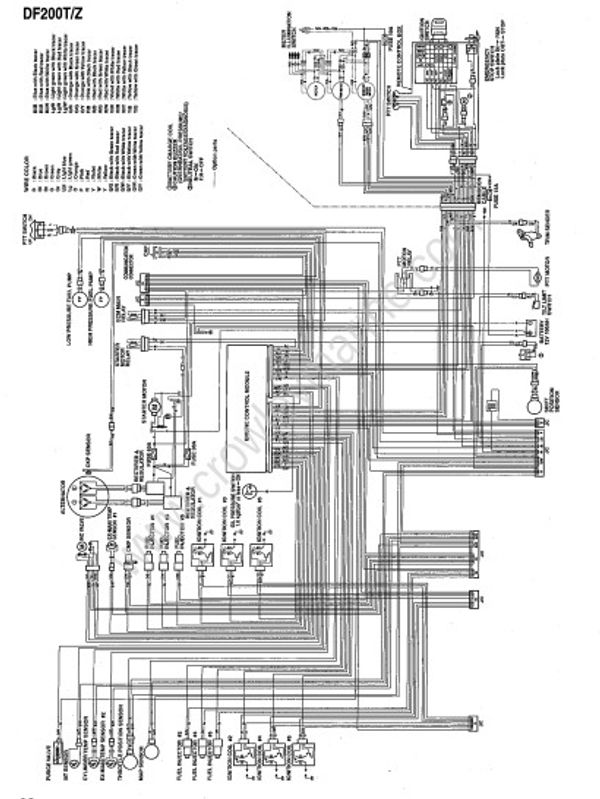

Owner's Manual DF200 Wiring Diagram

WIRE COLOR
B....Black
Bl...blue
Br....Brown
G.....Green
Gr....Gray
Lbl....Light blue
Lg.....Light green
O......Orange
P......Pink
R.....Red
V.....Voilet
W.....White
Y.....Yellow
B/G.....Black with Green tracer
B/R.....Black with Red tracer
B/W......Black with White tracer
B/Y......Black with Yellow tracer
G/W.....Black with White tracer
G/Y....Green with Yellow tracer
Bl/B...Blue with Black tracer
Bl/R....Blue with Red tracer
Bl/W....Blue with White tracer
Lg/B....Light green with Black tracer
Lg/R....Light green with Red tracer
Lg/W....Light green with White tracer
O/B...Orange with Black tracer
O/G....Orange with Green tracer
O/Y...Orange with Yellow tracer
P/B...Pink with Black tracer
R/B...Red with Black tracer
R/G....Red with Green tracer
R/W...Red with White tracer
V/W....Violet with White tracer
W/R...White with Red tracer
W/Y....White with Yellow tracer
Y/B...Yellow with Black tracer
Y/G...Yellow with Green tracer

(1) BATTERY CHARGE COIL
(2) CAUTION BUZZZER (OVERHEAT/OIL PRESSURE/BATTERY VOLTAGE/DIAGNOSIS)
(3) NEAUTRAL SWITCH
N→ON
F.R→OFF

.....Option parts

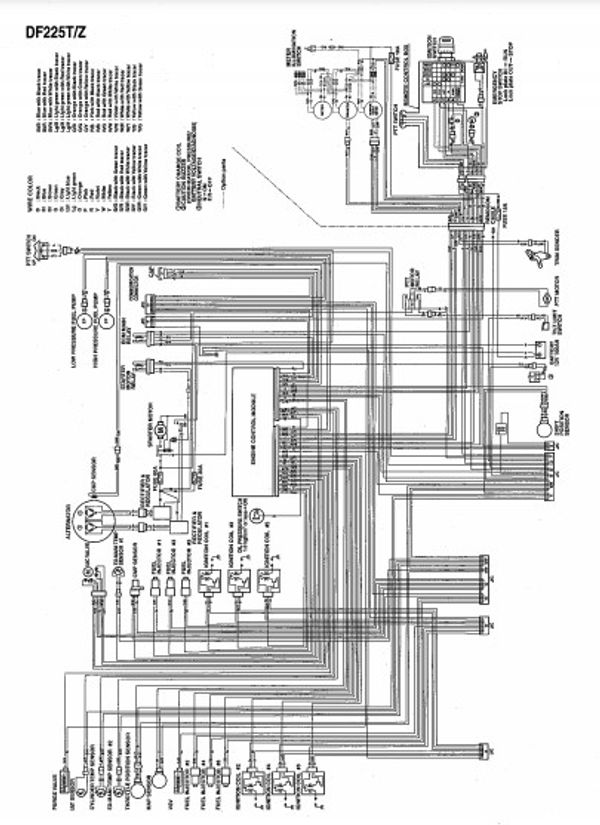

WIRE COLOR
B....Black
Bl...blue
Br....Brown
G.....Green
Gr....Gray
Lbl....Light blue
Lg.....Light green
O......Orange
P......Pink
R.....Red
V.....Voilet
W.....White
Y.....Yellow
B/G.....Black with Green tracer
B/R.....Black with Red tracer
B/W......Black with White tracer
B/Y......Black with Yellow tracer
G/W.....Black with White tracer
G/Y....Green with Yellow tracer
Bl/B...Blue with Black tracer
Bl/R....Blue with Red tracer
Bl/W....Blue with White tracer
Lg/B....Light green with Black tracer
Lg/R....Light green with Red tracer
Lg/W....Light green with White tracer
O/B...Orange with Black tracer
O/G....Orange with Green tracer
O/Y...Orange with Yellow tracer
P/B...Pink with Black tracer
R/B...Red with Black tracer
R/G....Red with Green tracer
R/W...Red with White tracer
V/W....Violet with White tracer
W/R...White with Red tracer
W/Y....White with Yellow tracer
Y/B...Yellow with Black tracer
Y/G...Yellow with Green tracer

(1) BATTERY CHARGE COIL
(2) CAUTION BUZZZER (OVERHEAT/OIL PRESSURE/BATTERY VOLTAGE/DIAGNOSIS)
(3) NEAUTRAL SWITCH
N→ON
F.R→OFF

.....Option parts

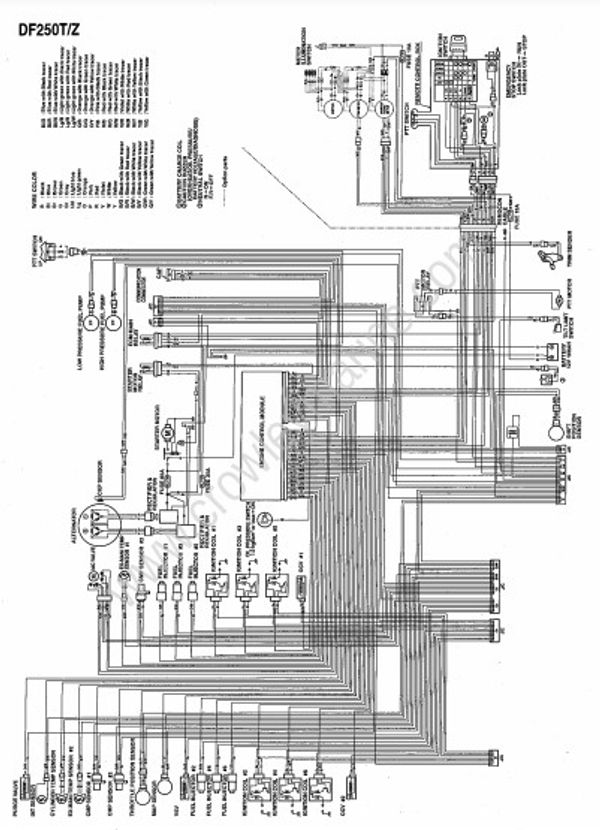

WIRE COLOR
B....Black
Bl...blue
Br....Brown
G.....Green
Gr....Gray
Lbl....Light blue
Lg.....Light green
O......Orange
P......Pink
R.....Red
V.....Voilet
W.....White
Y.....Yellow
B/G.....Black with Green tracer
B/R.....Black with Red tracer
B/W......Black with White tracer
B/Y......Black with Yellow tracer
G/W.....Black with White tracer
G/Y....Green with Yellow tracer
Bl/B...Blue with Black tracer
Bl/R....Blue with Red tracer
Bl/W....Blue with White tracer
Lg/B....Light green with Black tracer
Lg/R....Light green with Red tracer
Lg/W....Light green with White tracer
O/B...Orange with Black tracer
O/G....Orange with Green tracer
O/Y...Orange with Yellow tracer
P/B...Pink with Black tracer
R/B...Red with Black tracer
R/G....Red with Green tracer
R/W...Red with White tracer
V/W....Violet with White tracer
W/R...White with Red tracer
W/Y....White with Yellow tracer
Y/B...Yellow with Black tracer
Y/G...Yellow with Green tracer

(1) BATTERY CHARGE COIL
(2) CAUTION BUZZZER (OVERHEAT/OIL PRESSURE/BATTERY VOLTAGE/DIAGNOSIS)
(3) NEAUTRAL SWITCH
N→ON
F.R→OFF

.....Option parts
