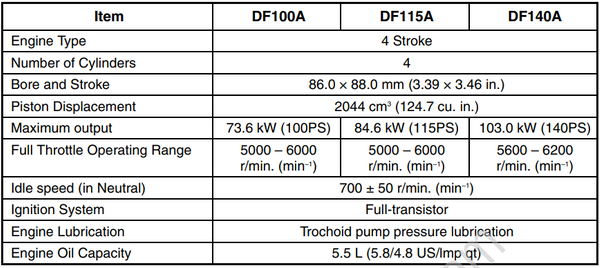

SPECIFICATIONS
Power rated in accordance with NMMA procedure.

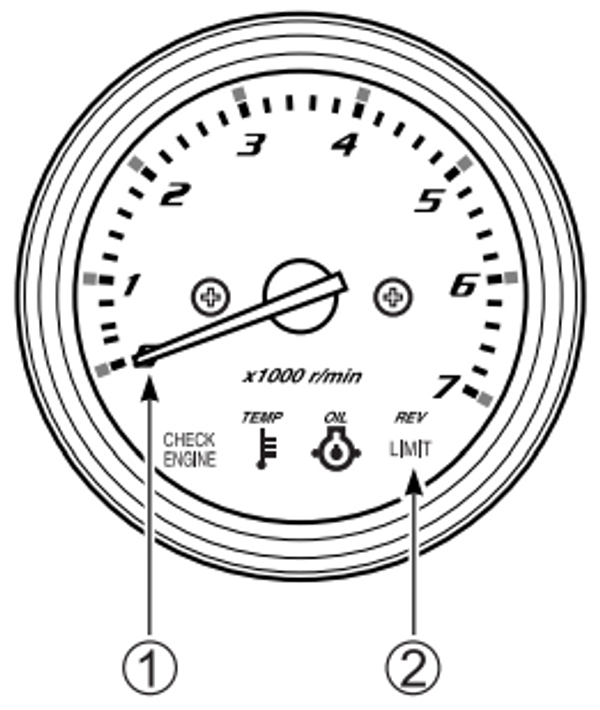

CHART OF TOTAL OPERATING HOURS INDICATION
| Total operating hours | MONITOR-TACHOMETER Needle (1) indication |
MONITOR-TACHOMETER REV-LIMIT lamp (2) flashing |
|---|---|---|
| 0h-(49h) | No | No |
| 50h- | 500rpm | No |
| 60h- | 600rpm | No |
| : : |
: : |
: : |
| 540h- | 5400rpm | No |
| 550h- | 500rpm | 1 time |
| 560h- | 600rpm | 1 time |
| : : |
: : |
: : |
| 1040h- | 5400rpm | 1 time |
| 1050h- | 500rpm | 2 times |
| : : |
: : |
: : |
| 1540h- | 5400rpm | 2 times |
| 1550h- | 500rpm | 3 times |
| : : |
: : |
: : |
| 2030h- | 5300rpm | 3 times |
| 2040h or over | 5400rpm | 3 times |
*: One flashing is corresponded to 500 hours.
