Owner's Manual
Check for proper operation of the Power Trim and Tilt.
Make sure the tilt pin is securely installed in the proper position.
Check for proper trim angle.
Make sure you have the boating safety and emergency equipment on board.
BREAK-IN
Proper operation during this break-in period will help ensure maximum life and performance from your engine. The following guidelines will explain proper break-in procedures.
Failure to follow the break-in procedures described below can result in severe engine damage.
Be sure to follow the engine break-in procedures described below.
Break-in period: 10 hours
Break-in procedure
- For the initial 2 hours:
Allow sufficient idling time (about 5 minutes) for the engine to warm up after cold engine starting.
Running at high speed without sufficient warm-up may cause severe engine damage such as piston seizure.
Always allow sufficient idling time (5 minutes) for the engine to warm-up before running at high speed.
After warming up, run the engine at idling speed or the lowest in-gear speed for about 15 minutes.
During the remaining 1 hour and 45 minutes, if safe boating conditions permit, operate the engine in gear at less than 1/2 (half) throttle (3000 r/min.).
You may throttle up beyond the recommended operating range to plane your boat, then immediately reduce the throttle to the recommended operating range.
- For the next 1 hour:
Safe boating conditions permitting, operate the engine in gear at 4000 r/min. or at three quarter throttle. Avoid running the engine at full throttle.
- Remaining 7 hours:
Safe boating conditions permitting, operate the engine in gear at desired engine speed.
You may occasionally use full throttle; however do not operate the engine continuously at full throttle for more than 5 minutes at any time.
Running continuously at full throttle for more than 5 minutes at a time during the last 7 hours of break-in operation may cause severe engine damage such as seizure.
During the last 7 hours of break-in operation, do not operate at wide open throttle for more than 5 minutes at a time.
OPERATION
BEFORE ATTEMPTING TO START THE ENGINE
Lower the motor into the water.

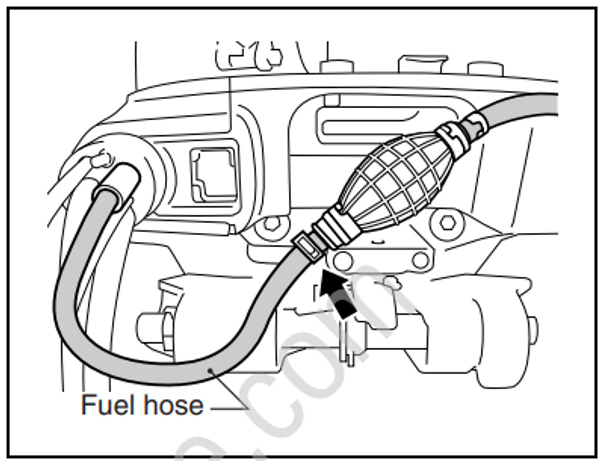

Make sure the fuel hose is securely connected to the fuel tank and the motor.

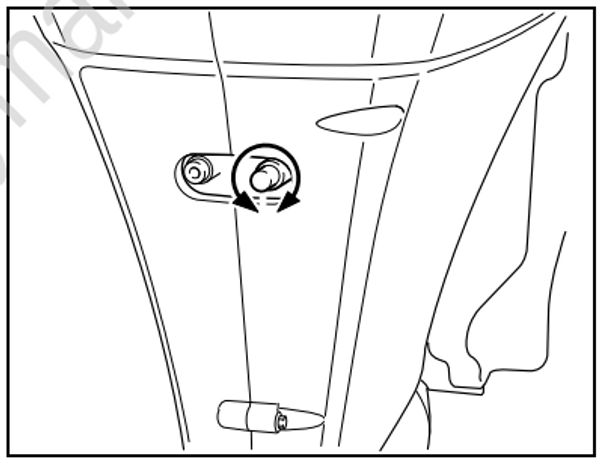

- Direct the pilot water hole to the position you intend.

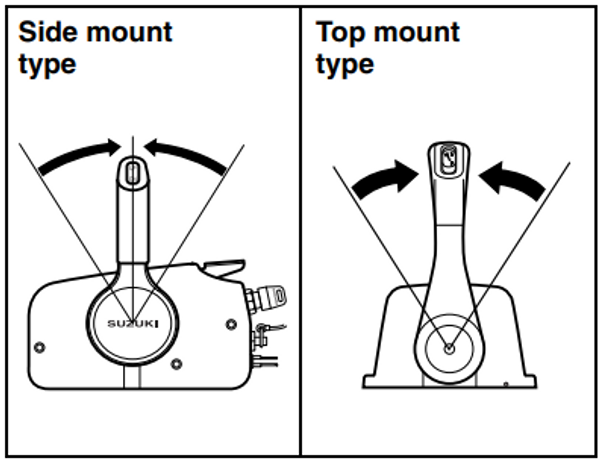

- Make sure the motor is in “NEUTRAL”.
