TRIM ANGLE ADJUSTMENT

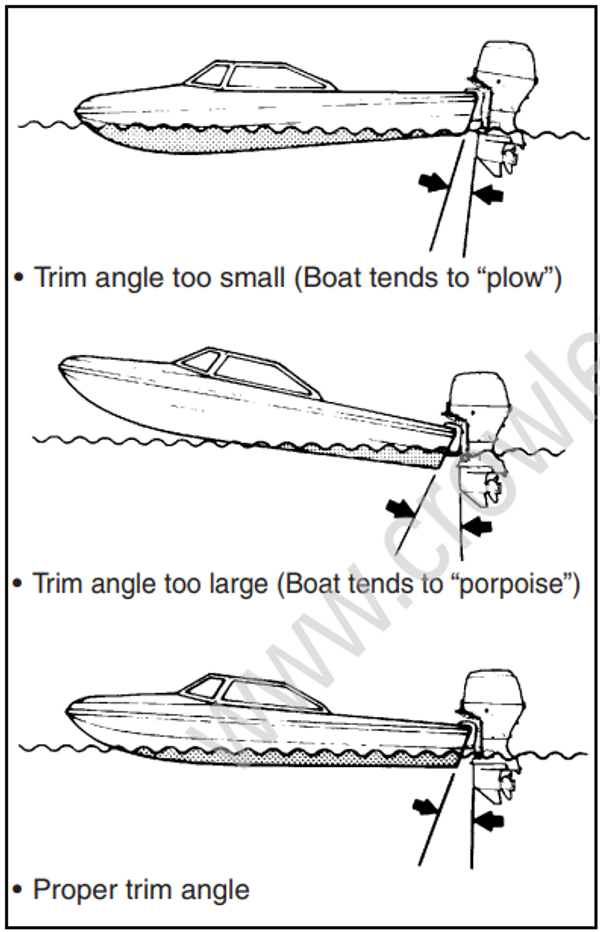

To help maintain steering stability and good performance, always maintain the proper trim angle as shown in the illustration. The appropriate trim angle varies depending on the combination of the boat, engine, and propeller, as well as operating conditions.
Make a test run in the boat to determine if the trim angle needs to be adjusted. Adjust the trim angle using the Power Trim and Tilt system.
Refer to the POWER TRIM AND TILT section.
If you still cannot achieve good performance, there may be a problem with engine mounting height. Consult your dealer for assistance.
Trim angle greatly affects steering stability. If the trim angle is too small, the boat may “plow” or “bow steer”. If the trim angle is too large, the boat may “chine walk” from side to side or “porpoise” up and down. These conditions, which result in loss of steering control, can cause occupants to be thrown overboard.
Always maintain proper trim angle based on the combination of your boat, engine, and propeller, as well as operating conditions.
When the motor is tilted beyond the maximum trim position, the swivel bracket will not have side support from the clamp bracket and the tilt system will be unable to cushion the engine if the lower unit strikes an obstruction. This could lead to occupant injury.
Do not operate the engine above 1500 r/ min or operate the boat in a planning attitude with the motor tilted beyond the maximum trim position.
If you operate the boat with the motor trimmed beyond the maximum trim position, the water intake holes may be above the water line, causing severe engine damage due to overheating.
Never operate the boat with the motor trimmed beyond the maximum trim position.
TRIM TAB ADJUSTMENT
This adjustment is used to compensate for the possible tendency of your boat to veer slightly to port or starboard. This tendency could be due to such things as propeller torque, motor mounting position, etc.
To adjust the trim tab:

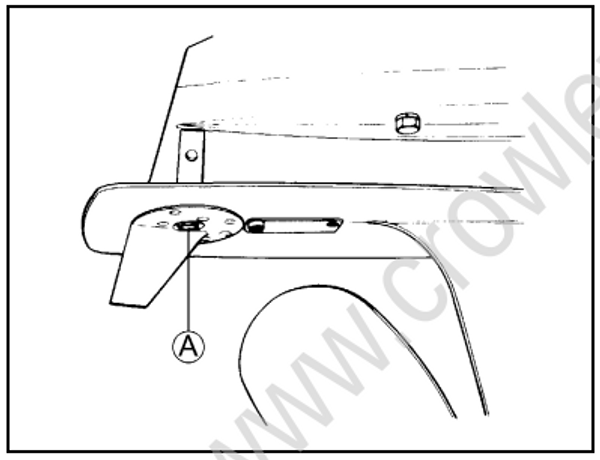

- Loosen the bolt (A) that holds the trim tab in place.

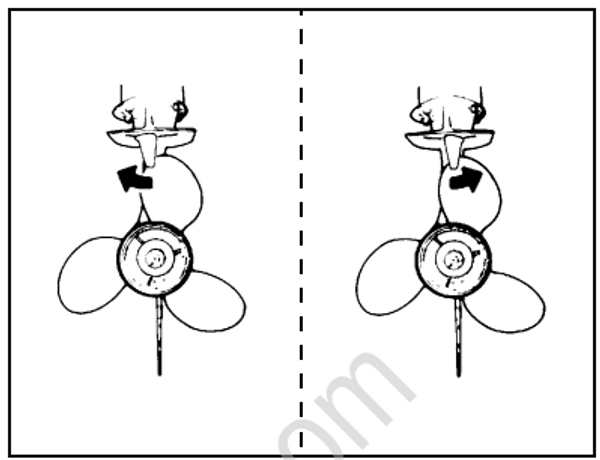

- If the boat tends to veer to port, move the rear end of the trim tab toward the port side.
If the boat tends to veer to starboard, move the rear end of the trim tab toward the starboard side.
- Tighten the bolt that holds the trim tab in place.
After adjusting the trim tab, check to see if the boat still tends to veer to one side. If necessary, readjust the trim tab.
THROTTLE TENSION ADJUSTMENT

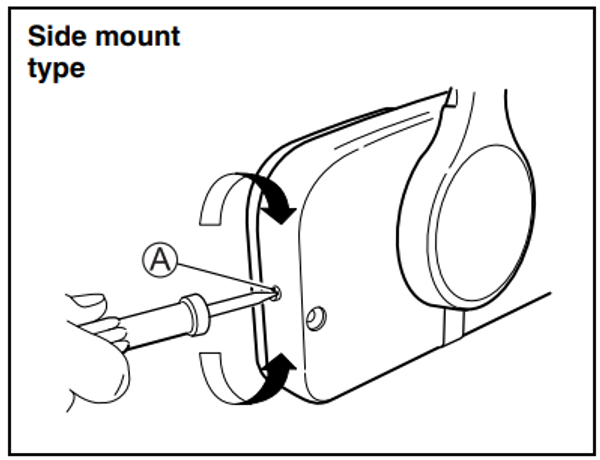

The tension of the remote control handle can be adjusted according to your preference. To increase the tension, turn the adjuster (A) clockwise. To decrease the tension, turn the adjuster counterclockwise.
Top mount type
When adjusting the tension of the remote control handle, consult your authorized Suzuki Marine Dealer
IDLE SPEED ADJUSTMENT
The idle speed has been factory adjusted between 600 – 650 r/min. in neutral.
(DF140: 675 – 725 r/min)
If idle speed cannot be set within the specified range, contact your authorized Suzuki Marine Dealer.
MOTOR COVER FASTENING ADJUSTMENT
If you feel motor cover fastening is loose or too tight when locking the levers, adjust as follows:

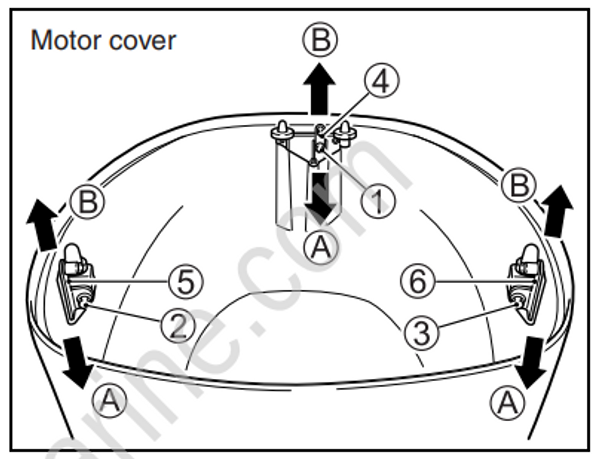

Loosen the bolts (1), (2) and (3).
Adjust the position of brackets (4), (5) and (6).
To increase the fastening, move the brackets to the direction (A). To decrease the fastening, move the brackets to the direction (B).Tighten the bolts.
