New Service [Throttle And Magneto Base Control System] [1987]

A: Magneto base-Magneto control lever: 79 ± 0.5 mm (3.11 ± 0.02 in)

B: Throttle cam-Carburetor control lever: 170.5 mm (6.71 in)

C: Throttle control lever

    Caburetor control lever: 94 ± 0.5 mm (3.7 ± 0.02 in)

Adjustment

1. Remove the joint links from the magneto control lever and carburetor control lever.

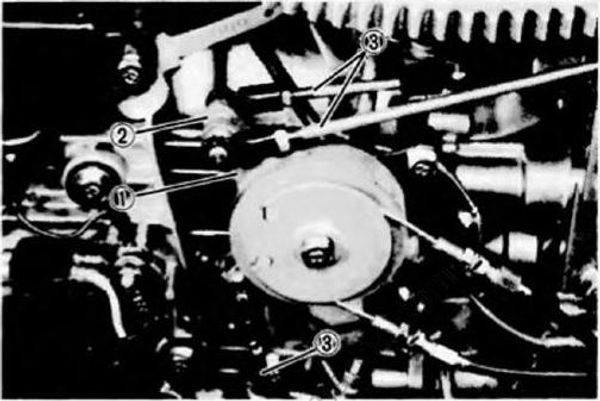

1. Carburetor control lever 2. Magneto control lever 3. Joint link

2. Move the CDI magneto base by hand to set it to the full-advanced position.

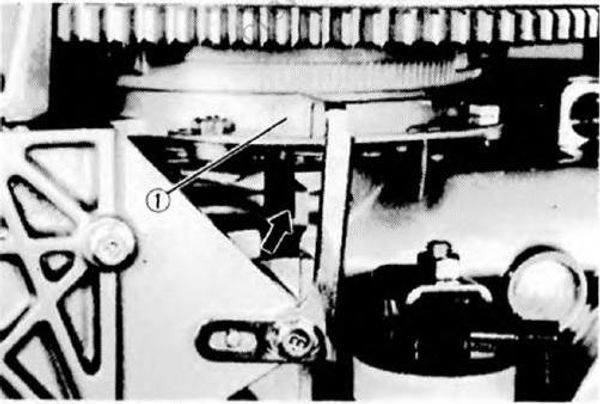

1. CDI magneto base
