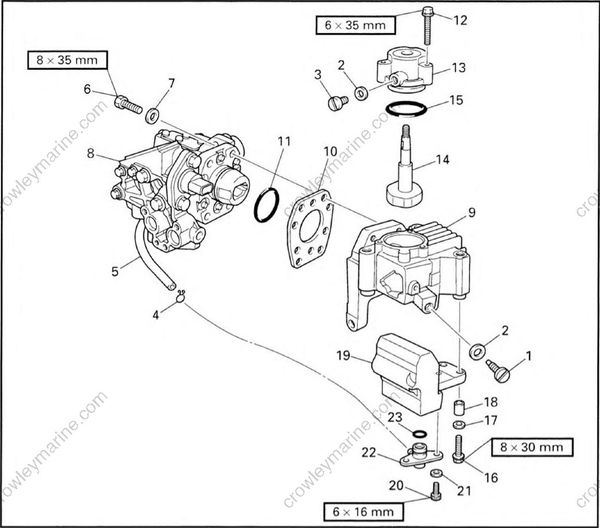

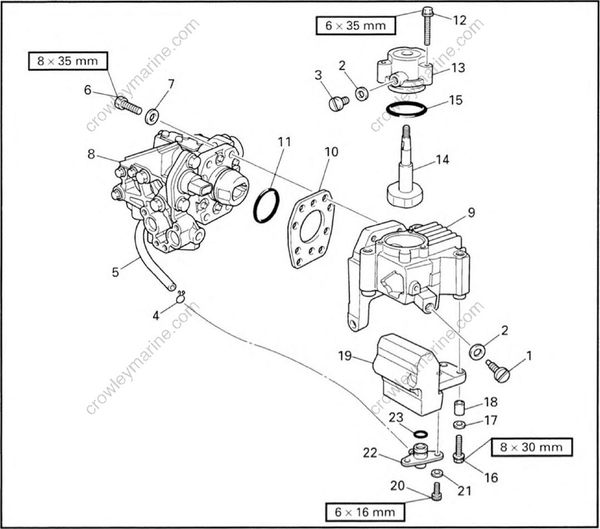

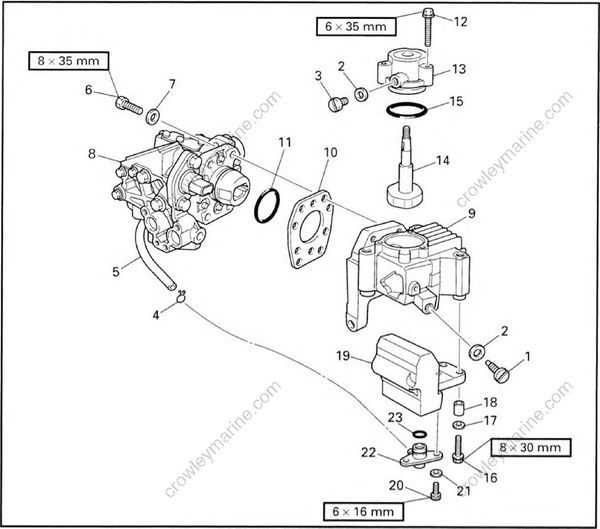

DISASSEMBLING/ASSEMBLING THE MECHANICAL FUEL PUMP BODY
| Order | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| Gear oil | Refer to "CHANGING THE MECHANICAL FUEL PUMP OIL" on page 3-6. | ||
| 1 | Gear oil drain screw | 1 | |
| 2 | Gasket | 2 | |
| 3 | Gear oil level check screw | 1 | |
| 4 | Clip | 1 | |
| 5 | Fuel return hose | 1 | (mechanical fuel pump regulator-to-hose joint) |
| 6 | Bolt | 4 | |
| 7 | Washer | 4 |
| Order | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| 8 | Mechanical fuel pump assembly | 1 | |
| 9 | Mechanical fuel pump body | 1 | |
| 10 | Joint plate | 1 | |
| 11 | O-ring | 1 | Not reusable |
| 12 | Bolt | 3 | |
| 13 | Mechanical fuel pump body cover | 1 | |
| 14 | Camshaft | ||
| 15 | O-ring | 1 | Not reusable |
| Order | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| 16 | Bolt | 2 | |
| 17 | Washer | 2 | |
| 18 | Collar | 2 | |
| 19 | Mechanical fuel pump regulator | 1 | |
| 20 | Bolt | 2 | |
| 21 | Washer | 2 | |
| 22 | Fuel return hose joint | 1 | |
| 23 | O-ring | 1 | Not reusable |
| For assembly, reverse the disassembly procedure. |

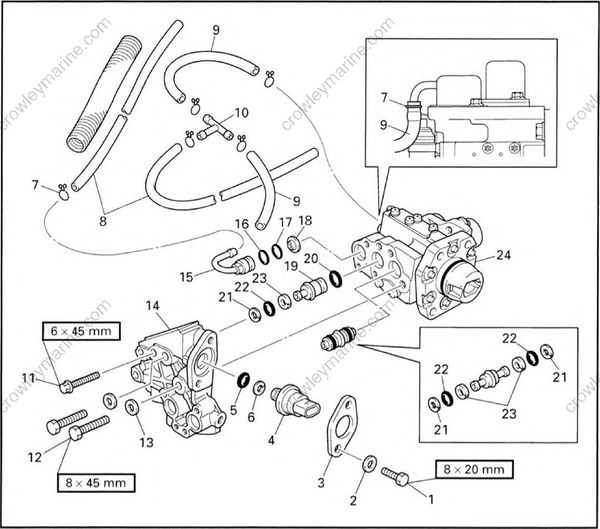

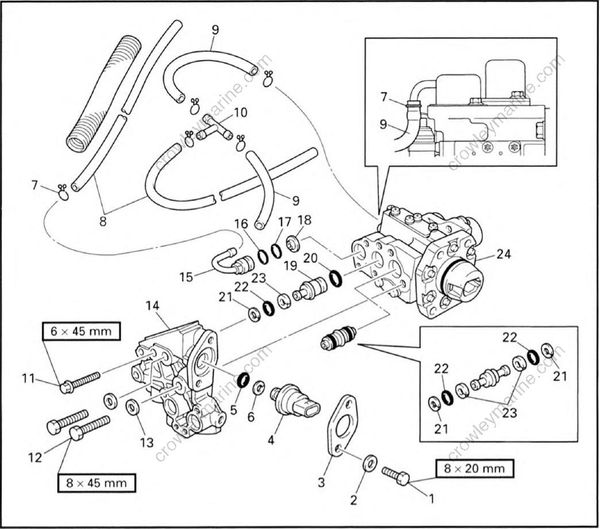

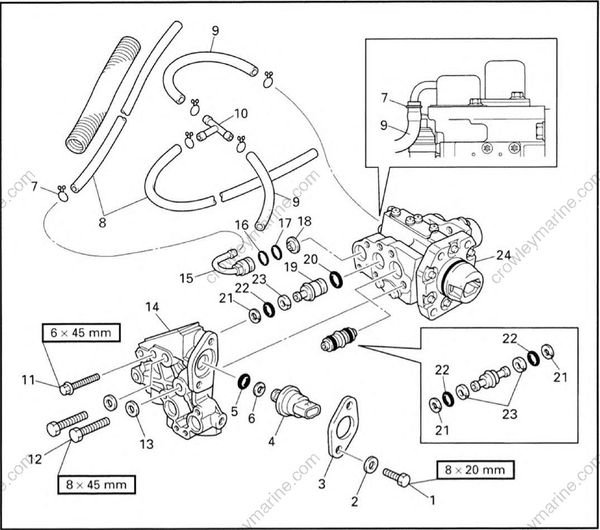

DISASSEMBLING/ASSEMBLING THE MECHANICAL FUEL PUMP ASSEMBLY
| Order | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| 1 | Bolt | 2 | |
| 2 | Washer | 2 | |
| 3 | Fuel pressure sensor plate | 1 | |
| 4 | Fuel pressure sensor | 1 | |
| 5 | O-ring | 1 | |
| 6 | Seal ring | 1 | Not reusable |
| 7 | Clip | 5 | |
| 8 | Fuel return hose | 2 | (mechanical fuel pump-to-vapor separator) |
| Order | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| 9 | Fuel return hose | 2 | (hose joint-to-mechanical fuel pump) |
| 10 | Hose joint | 1 | |
| 11 | Bolt | 3 | |
| 12 | Bolt | 2 | |
| 13 | Washer | 2 | |
| 14 | Mechanical fuel pump cover | 1 | |
| 15 | Fuel return hose adaptor | 1 | |
| 16 | O-ring | 1 | Not reusable |
| 17 | O-ring | 1 | Not reusable |
| Order | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| 18 | Outlet valve | 1 | |
| 19 | Mechanical fuel pump joint | 1 | |
| 20 | O-ring | 1 | Not reusable |
| 21 | Seal ring (thin) | 3 | Not reusable |
| 22 | O-ring | 3 | Not reusable |
| 23 | Seal ring (thick) | 3 | Not reusable |
| 24 | Mechanical fuel pump | 1 | |
| For assembly, reverse the disassemblyprocedure. |
