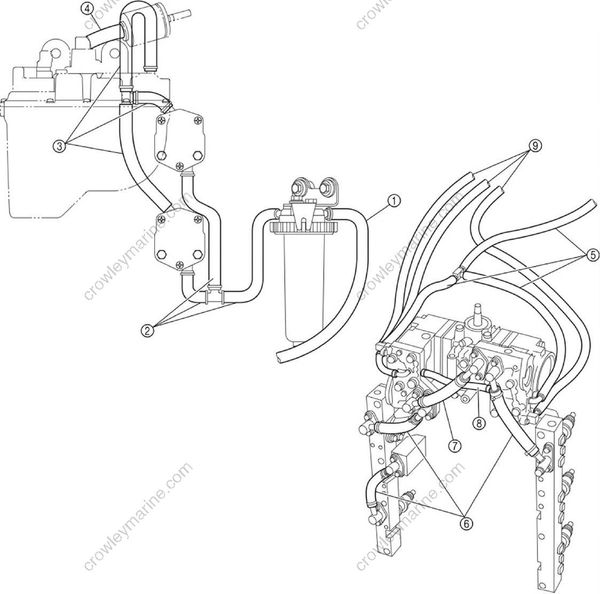

Hose routing
Fuel hoses and fuel pipes
- (1) Fuel hose (fuel tank-to-fuel filter)
- (2) Fuel hose (fuel filter-to-fuel pump)
- (3) Fuel hose (fuel pump-to-vapor separator)
- (4) Medium-pressure fuel hose (vapor separator-to-fuel filter)
- (5) Medium-pressure fuel hose (fuel filter-to-high-pressure fuel pump)
- (6) High-pressure fuel pipe (high-pressure fuel pump-to-fuel rail)
- (7) High-pressure fuel pipe (high-pressure fuel pump-to-high-pressure fuel pump)
- (8) Fuel hose (high-pressure fuel pump-to-high-pressure fuel pump)
- (9) Fuel hose (high-pressure fuel pump-to-vapor separator)
