C60ER/60FED, C60TR/60FET
(1) Thermo switch
(2) Rectifier regulator
(3) Crank position sensor
(4) Pulser coil
(5) Charge coil
(6) Lighting coil
(7) Fuel enrichment valve
(8) Starter motor
(9) Battery
(10) Fuse (20A)
(11) CDI unit
(12) Starter relay
(13) Ignition coil
(14) Power trim and tilt relay (For C60TR/60FET)
(15) Power trim and tilt motor (For C60TR/60FET)
B........Black
Br ....... Brown
G.......Green
Gy... ...Gray
L........ Blue
O.......Orange
P........Pink
R........ Red
Sb... ...Sky-blue
W.......White
Y........Yellow
Lg......Light-green
75, 80, 90 hp
(1) Thermo switch
(2) Rectifier regulator
(3) Crank position sensor
(4) Lighting coil
(5) Charge coil
(6) Pulser coil
(7) Electrothermal valve (prime start model)
(8) Oil level sensor (oil injection model)
(9) Starter motor
(10) Battery
(11) Trim sensor (PTT model)
(12) Power trim and tilt motor (PTT model)
(13) Fuse (20A)
(14) Neutral switch (P75TH/75CEHTO, 90TR/90AETO, B90TR/90AETO)
(15) CDI unit
(16) Power trim and tilt relay (PTT model)
(17) Power trim and tilt switch (EHTO)
(18) Power trim and tilt relay (PTT model)
(19) Starter relay
(20) Ignition coil
[A] To oil level gauge
[B] To trim gauge
B....... Black
Gr....... Brown
G....... Green
Gy...... Gray
L........ Blue
Lg...... Light-green
O....... Orange
P........ Pink
R....... Red
Sb.......Sky-blue
W........White
Y.......Yellow
C75TR.75CET
(1) Thermo switch
(2) Rectifier regulator
(3) Crank position sensor
(4) Lighting coil
(5) Charge coil
(6) Pulser coil
(7) CDI unit
(8) Fuel enrichment valve
(9) Starter motor
(10) Battery
(11) Trim sensor
(12) PTT motor
(13) Fuse
(14) PTT relay
(15) Ignition coil
(16) Starter relay
P60TH/60FEHTO
(1) Buzzer
(2) Fuse (10A)
(3) Main switch
(4) Engine stop switch
[A] To tachometer
[B] To PTT switch (option)
[C] To trim sensor
[D] To oil level sensor
[E] To lamp switch (option)
B....... Black
Br...... Brown
G....... Green
Gy......Gray
G/R....Green/Red
L....... Blue
O....... Orange
P....... Pink
R....... Red
Sb..... Sky-blue
W.......White
Y....... Yellow
Lg......Light-green
G/W ....Green/White
P/B.....Pink/Black
REMOTE CONTROL BOX
(1) Main switch
(2) Buzzer
(3) Neutral switch
(4) Engine stop switch
(5) Power trim and tilt switch
[A] To meter harness

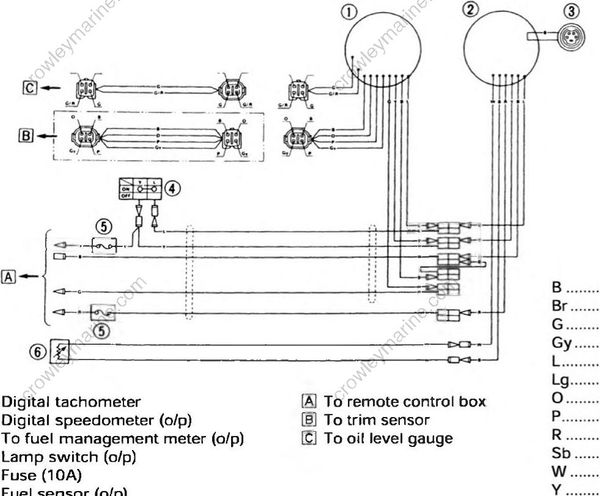

DIGITAL METER
(1) Digital tachometer
(2) Digital speedometer (o/p)
(3) To fuel management meter (o/p)
(4) Lamp switch (o/p)
(5) Fuse (10A)
(6) Fuel sensor (o/p)
[A] To remote control box
[B] To trim sensor
[C] To oil level gauge
B.........Black
Br.........Brown
G........Green
Gy.......Gray
L.......Blue
Lg.......Light-Green
O........Orange
P........Pink
R.......Red
Sb.........Sky-blue
W........White
Y........Yellow
