ELECTRICAL COMPONENTS

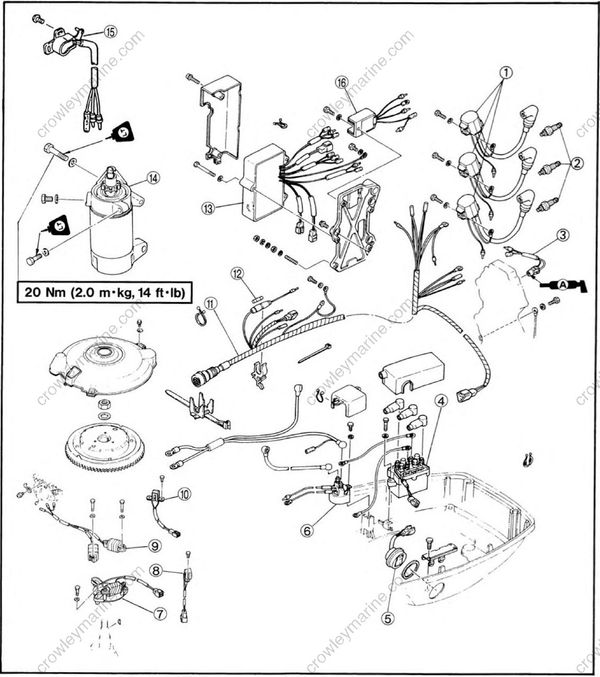

60 hp/70 hp
(1) Ignition coil
(2) Spark-plug
(3) Thermo-switch
(4) Power trim and tilt relay
(5) Power trim and tilt switch
(6) Starter Relay
(7) Charge Coil
(8) Crank Position Senser
(9) Lightning Coil
(10) Pulsar coil
(11) Wire harness
(12) Fuse
(13) C.D.I unit
(14) Starter motor
(15) Trim sensor
(16) Rectifier regulator

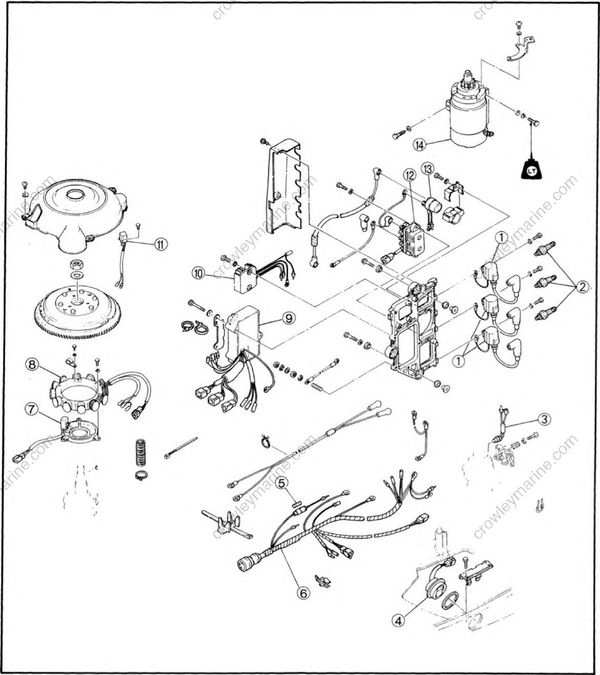

90 hp
(1) Ignition coil
(2) Spark-plug
(3) Thermo-switch
(4) Power trim and tilt switch
(5) Fuse
(6) Wire harness
(7) Pulser coil
(8) Stator assembly
(9) C.D.I unit
(10) Rectifier regulator
(11) Crank position sensor
(12) Power trim and tilt relay
(13) Starter relay
(14) Starter Motor
