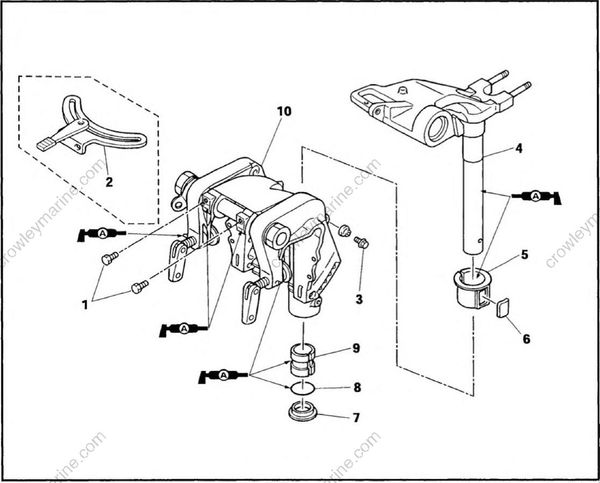

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
| Step | Procedure/Part name | Q'ty | Service points |
|---|---|---|---|
| SWIVEL AND STEERING BRACKET REMOVAL | Follow the left "Step” for removal. | ||
| 1 | Bolt (AEH) | 2 | |
| 2 | Steering friction ass'y (AMH, AEH) | 1 | |
| 3 | Friction bolt | 1 | NOTE: Loosen the friction bolt. |
| 4 | Steering bracket | 1 | |
| 5 | Busing | 1 | |
| 6 | Key | 1 | |
| 7 | Bushing | 1 | |
| 8 | O-ring | 1 | |
| 9 | Bushing | 1 | |
| 10 | Swivel bracket ass'y | 1 | |
| Reverse the removal steps for installation |
