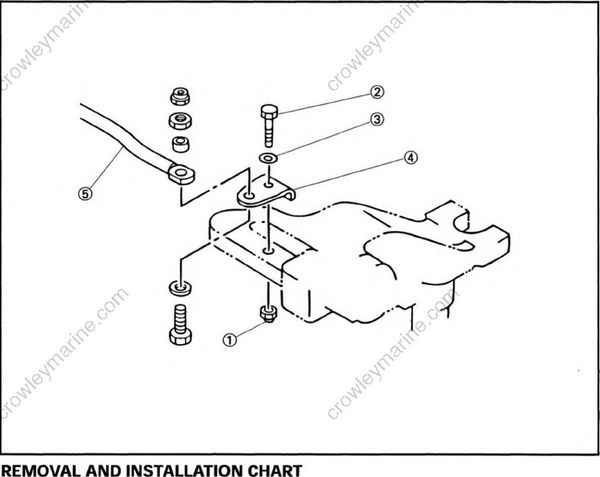

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
| Step | Procedure/Part name | Q'ty | Service points |
|---|---|---|---|
| STEERING RIDE GUIDE DISASSEMBLY (AE for Europe) | Follow the left "Step" for disassembly | ||
| (1) | Nut | 1 | |
| (2) | Bolt | 1 | |
| (3) | Washer | 1 | |
| (4) | Plate (ride guide) | 1 | |
| (5) | Rod | 1 | |
| Reverse the disassembly steps for assembly |
