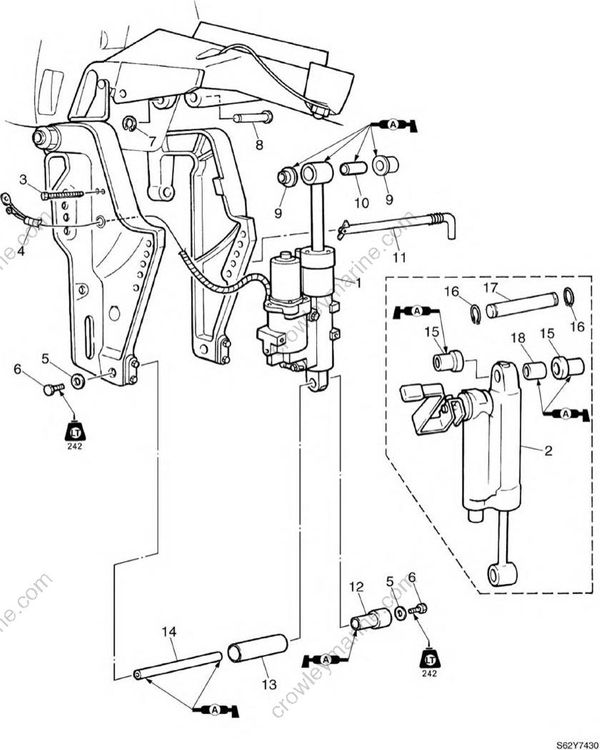

Power trim and tilt unit
| No. | Part name | Q’ty | Remarks | Tightening torques | |||
|---|---|---|---|---|---|---|---|
| Stage | N-m | kgf-m | ft-lb | ||||
| 1 | Power trim and tilt | 1 | EHT/ET models | ||||
| 2 | Hydro tilt | 1 | EHD/ED models | ||||
| 3 | Plastic tie | 3 | Not reusable | ||||
| 4 | PTT motor lead | 2 | |||||
| 5 | Washer | 2 | |||||
| 6 | Bolt | 2 | M8 x 16 mm | ||||
| 7 | Circlip | 1 | EHT/ET models | ||||
| 8 | Shaft | 1 | EHT/ET models | ||||
| 9 | Bushing | 2 | EHT/ET models | ||||
| 10 | Collar | 1 | EHT/ET models | ||||
| 11 | Tilt pin | 1 | |||||
| 12 | Collar | 1 | |||||
| 13 | Collar | 1 | |||||
| 14 | Shaft | 1 | |||||
| 15 | Bushing | 2 | EHD/ED models | ||||
| 16 | Circlip | 2 | EHD/ED models | ||||
| 17 | Shaft | 1 | EHD/ED models | ||||
| 18 | Collar | 1 | EHD/ED models |
Removing the power trim and tilt/hydro tilt

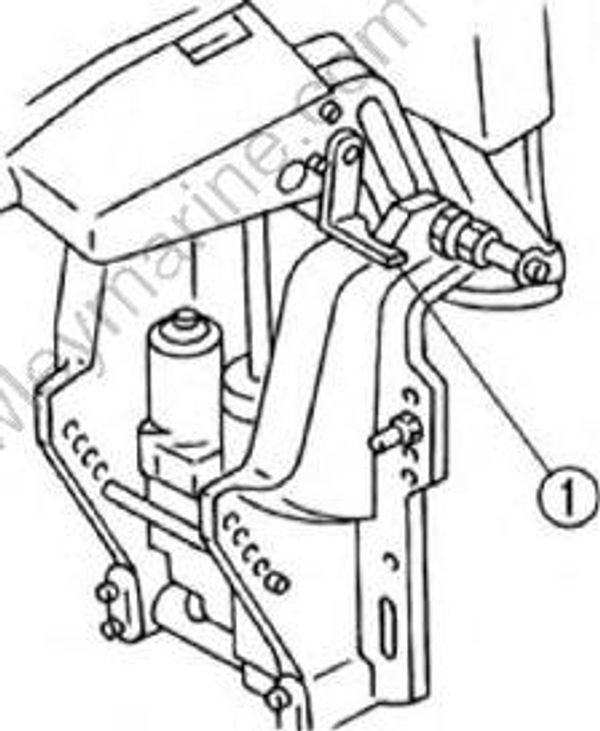

- Fully tilt the outboard up, and then support it with the tilt stop lever (1).
S62Y7440
WARNING
After tilting up the outboard, be sure to support it with the tilt stop lever.
Otherwise, the outboard could suddenly lower if the power trim and tilt unit should lose fluid pressure.

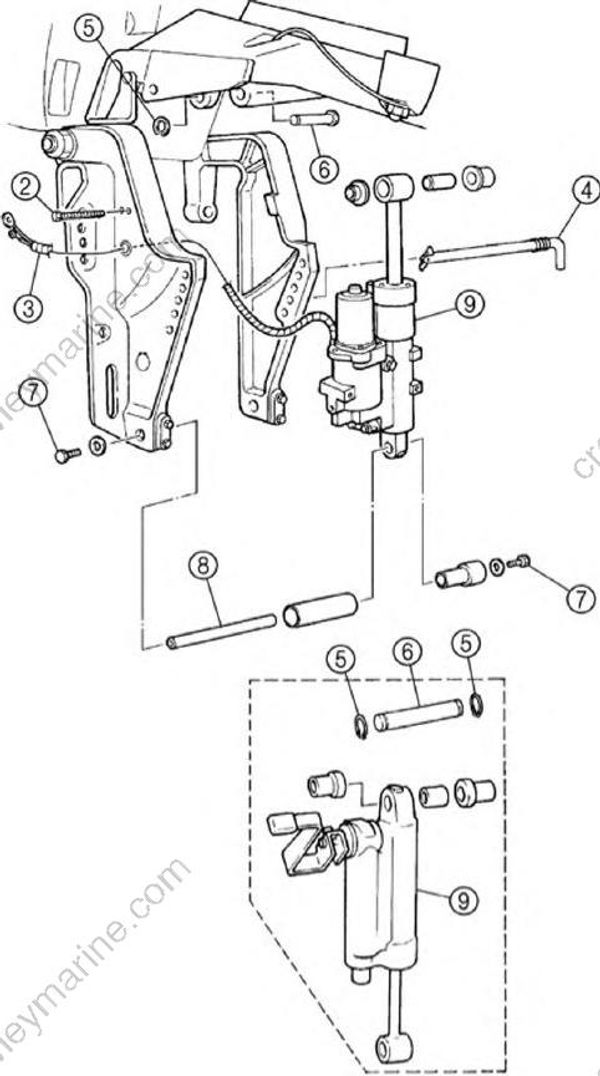

Loosen the plastic locking tie (2), and then pull out the PTT motor lead (3).
Remove the tilt pin (4).
Remove the circlip(s) (5) and the shaft (6).
Loosen the bolt (7), and then remove the shaft (8).
Remove the power trim and tilt/hydro tilt (9).
NOTE:
To remove the power trim and tilt/hydro tilt, lower the tilt rod slightly.
