INSTALLATION
FLYWHEEL MAGNETO

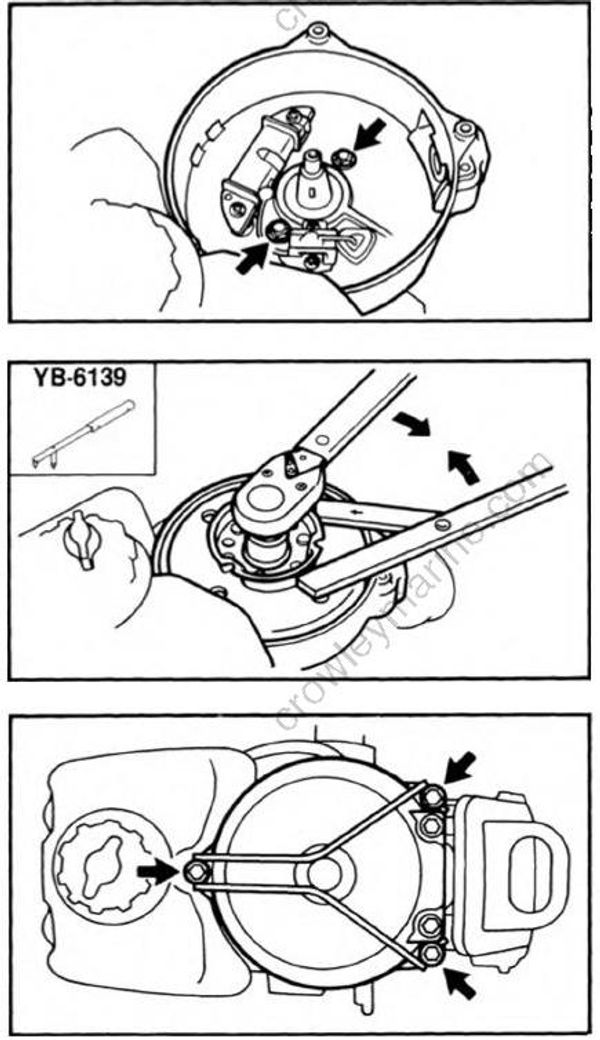

1) Install the magneto base on to the cylinder block.
2) Install the flywheel rotor on the crankshaft so that the woodruff key fits in the keyways in the crankshaft and flywheel rotor.
3) Lock the flywheel rotor with the washer and nut to the specified torque.
Tightening torque: 40-50 Nm (4.0-5.0 m-kg, 29-36 ft.lb)
4) Install the recoil starter on the cylinder block.
