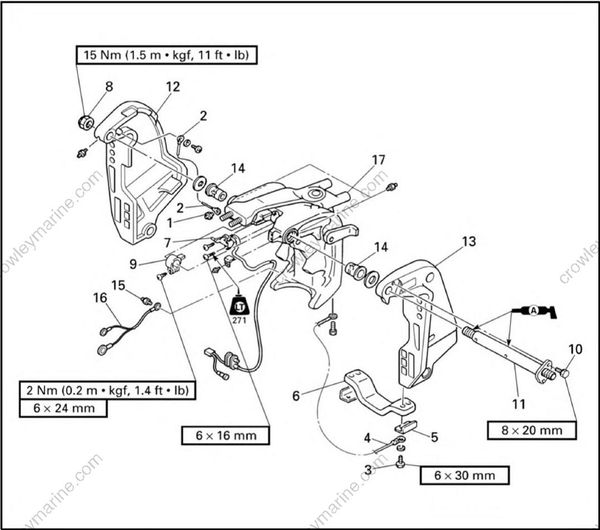

REMOVING/INSTALLING THE CLAMP BRACKETS
| Orde | Job/Part | Q'ty | Remarks |
|---|---|---|---|
| Upper case assembly | Refer to "UPPER CASE ASSEMBLY" on page 7-16 | ||
| 1 | Grease nipple | 4 | |
| 2 | Ground lead | 1 | |
| 3 | Bolt | 4 | |
| 4 | Ground lead | 1 | |
| 5 | Anode bracket | 2 | |
| 6 | Anode |
1 | |
| 7 | Trim sensor | 1 | |
| 8 | Self-locking nut | 1 | |
| 9 | Cam | 1 | |
| 10 | Bolt | 2 | |
| 11 | Clamp bracket bolt | 1 | |
| 12 | Starboard clamp bracket | 1 | |
| 13 | Port clamp bracket | 1 | |
| 14 | Bushing | 2 | |
| 15 | Grease nipple | 1 | |
| 16 | Ground lead | 1 | |
| 17 | Swivel bracket assembly | 1 | |
| For installation, reverse the removal procedure. |
